Open Reduction and Internal Fixation with AO Calcaneal Plate for Displaced Intra-articular Calcaneal Fracture: Myung Jin Lee, M.D., Sung Keun Sohn, M.D., Kyu Yeol Lee, M.D., Sung Soo Kim, M.D., Min Soo Kang, M.D., Hyeon Jun Kim, M.D, Sang Kyu Sun, M.D.; Journal of the Korean Fracture Society 2010;23(3):303-309.
DOI: https://doi.org/10.12671/jkfs.2010.23.3.303
Published online: July 31, 2010

Department of Orthopedic Surgery, College of Medicine, Dong-A University, Busan, Korea.

^*Department of Orthopedic Surgery, Dong-Eui Medical Center, Busan, Korea.

Address reprint requests to: Hyeon Jun Kim, M.D. Department of Orthopedic Surgery, College of Medicine, Dong-A University, 1, Dongdaesin-dong 3-ga, Seo-gu, Busan 602-715, Korea. Tel: 82-51-240-5167, Fax: 82-51-254-6757, campbellkim@naver.com

• Received: November 19, 2009 • Revised: March 4, 2010 • Accepted: April 7, 2010

70 Views
0 Download
2 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Purpose
To evaluate the surgical outcomes of open reduction and internal fixation of AO calcaneal plate in displaced intra-articular fractures of the calcaneus.
Materials and Methods
From January 2004 to July 2007, 25 patients with 27 displaced intra-articular calcaneal fractures were treated by open reduction and internal fixation using the AO calcaneal plate. Preoperative, postoperative evaluations and a follow-up after 1 year were done radiologically by the Böhler angle, Gissane angle, heel height and width among all patients. Their functional status was assessed by means of the Maryland foot score.
Results
The mean Böhler angle, Gissane angle, heel height and width were restored comparing with preoperative data. However, in Sanders type IV, some losses of reduction occurred at 1 year follow-up (p<0.05). The mean Maryland foot scores were 85 points in type II, 82 points in type III and 63 points in type IV. Sanders types significantly affected the clinical results (p<0.05).
Conclusion
The AO calcaneal plate fixation using extensile L-shpaed lateral approach shows satisfactory radiologic and clinical results in the treatment of displaced intra-articular calcaneal fractures.
Key words: Calcaneus, Intra-articular fracture, Internal fixation, AO calcaneal plate

REFERENCES

1. Basile A. Operative versus nonoperative treatment of displaced intra-articular calcaneal fractures in elderly patients. J Foot Ankle Surg, 2010;49:25-32.Article
2. Boack DH, Wichelhaus A, Mittlmeier T, Hoffmann R, Haas NP. Therapy of dislocated calcaneus joint fracture with the AO calcaneus plate. Chirurg, 1998;69:1214-1223.Article PDF
3. Buckley R, Tough S, McCormack R, et al. Operative compared with nonoperative treatment of displaced intra-articular calcaneal fractures: a prospective, randomized, controlled multicenter trial. J Bone Joint Surg Am, 2002;84:1733-1744.
4. Cave EF. Fractures of the os calcis--the problem in general. Clin Orthop Relat Res, 1963;30:64-66.
5. Fernandez DL, Koella C. Combined percutaneous and "minimal" internal fixation for displaced articular fractures of the calcaneus. Clin Orthop Relat Res, 1993;290:108-116.Article
6. Frankel JP, Anderson CD. The use of a calcaneal reconstruction plate in intra-articular calcaneal fractures. J Foot Ankle Surg, 1996;35:318-330.Article
7. Huang PJ, Huang HT, Chen TB, et al. Open reduction and internal fixation of displaced intra-articular fractures of the calcaneus. J Trauma, 2002;52:946-950.Article
8. Huefner T, Thermann H, Geerling J, Pape HC, Pohlemann T. Primary subtalar arthrodesis of calcaneal fractures. Foot Ankle Int, 2001;22:9-14.
9. Jung HG, Kim YJ, Jeon SH. Primary subtalar arthrodesis for the treatment of intra-articular calcaneal comminuted fractures. J Korean Fract Soc, 2006;19:418-423.Article
10. Kerr PS, Pape M, Jackson M, Atkins RM. Early experiences with the AO calcaneal fracture plate. Injury, 1996;27:39-41.Article
11. Kim IG, Kim JH, Kim CH, Kim JS. A critical analysis of long-term result and prognostic factors of fractures of the calcaneus. J Korean Soc Fract, 1998;11:354-361.Article
12. Kim ST, Youn TH, Park JB, Lee JY. Surgical outcomes of intra-articular fractures of calcaneus using AO calcaneal plate. J Korean Foot Ankle Soc, 2009;13:75-79.
13. Lee HJ, Kang SY, Kim JW. Surgical treatment of displaced intra-articular fracture of the calcaneus using a Y-plate. J Korean Soc Fract, 2002;15:433-438.Article
14. Longino D, Buckley RE. Bone graft in the operative treatment of displaced intraarticular calcaneal fractures: is it helpful? J Orthop Trauma, 2001;15:280-286.Article
15. Loucks C, Buckley R. Bohler's angle: correlation with outcome in displaced intra-articular calcaneal fractures. J Orthop Trauma, 1999;13:554-558.Article
16. Myerson M, Quill GF Jr. Late complications of fractures of the calcaneus. J Bone Joint Surg Am, 1993;75:331-341.
17. Parmar HV, Triffitt PD, Gregg PJ. Intra-articular fractures of the calcaneum treated operatively or conservatively. A prospective study. J Bone Joint Surg Br, 1993;75:932-937.Article PDF
18. Radnay CS, Clare MP, Sanders RW. Subtalar fusion after displaced intra-articular calcaneal fractures: does initial operative treatment matter? J Bone Joint Surg Am, 2009;91:541-546.Article
19. Robb CA, Deans V, Iqbal MJ, Cooper JP. Comparison of non-operative and surgical treatment of displaced calcaneal fractures. Foot, 2007;17:169-173.Article
20. Rodriguez SR, Garduno RB, Raygoza CO. Surgical treatment of calcaneal fractures with a special titanium AO plate. Acta Ortopedica Mexicana, 2004;18:34-38.
21. Ross SD, Sowerby MR. The operative treatment of fractures of the os calcis. Clin Orthop Relat Res, 1985;199:132-143.Article
22. Sanders R, Fortin P, Dipasquale T, Walling A. Operative treatment in 120 displaced intraarticular calcaneal fractures: Results using a prognostic computed tomography scan classification. Clin Orthop Relat Res, 1993;290:87-95.
23. Schepers T, van Lieshout EM, van Ginhoven TM, Heetveld MJ, Patka P. Current concepts in the treatment of intra-articular calcaneal fractures: results of a nationwide survey. Int Orthop, 2008;32:711-715.Article PDF
24. Song KS, Jeon SY, Chun JH. Radiologic evaluation of treatment outcome in intraarticular calcaneal fracture by open reduction without bone graft. J Korean Soc Fract, 2002;15:226-233.
25. Stephenson JR. Surgical treatment of displaced intra-articular fractures of the calcaneus. A combined lateral and medial approach. Clin Orthop Relat Res, 1993;290:68-75.
26. Thordarson DB, Krieger LE. Operative vs. non operative treatment of intra-articular fractures of the calcaneus: a prospective randomized trial. Foot Ankle Int, 1996;17:2-9.Article PDF
27. Yang KH, Chung JB, Yoon HK, Park SY, Yoon HS. Treatment of displaced intra-articular calcaneal fractures using a F-plate. J Korean Fract Soc, 2007;20:1-5.Article
28. Zwipp H, Tscherne H, Thermann H, Weber T. Osteosynthesis of displaced intraarticular fractures of the calcaneus. Results in 123 cases. Clin Orthop Relat Res, 1993;290:76-86.

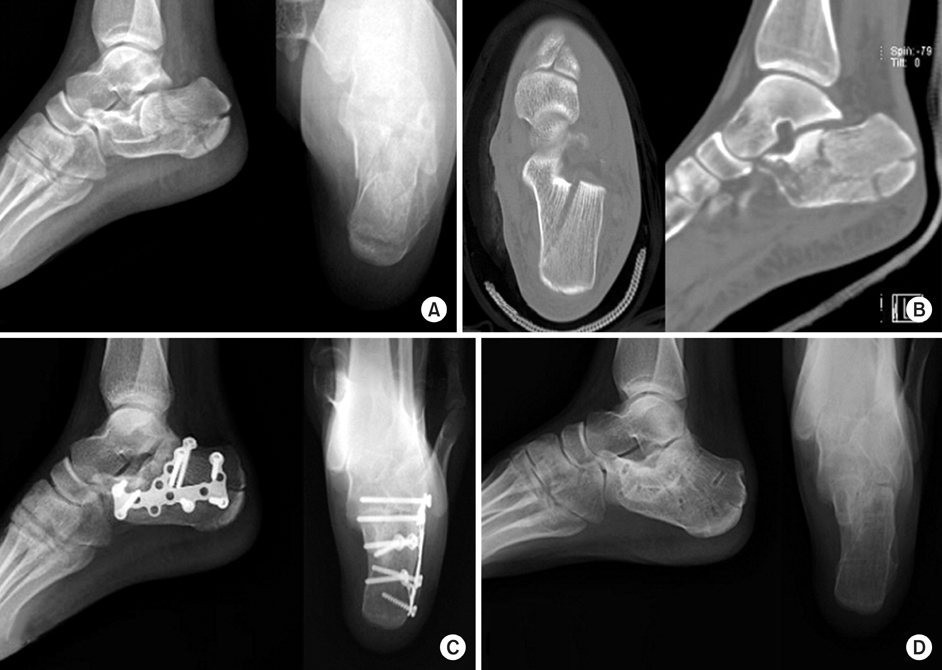

Figure 1

A 21-year-old female patient sustained left intra-articular calcaneal fracture by slip down.

(A) Preoperative X-ray shows tongue type intra-articular calcaneal fracture.

(B) Preoperative axial and sagittal CT scans show Sanders type IIb calcaneal fracture.

(C) Postoperative X-ray shows restoration of Böhler angle and heel width.

(D) At follow-up of 13months, X-ray shows no subtalar joint arthritis.

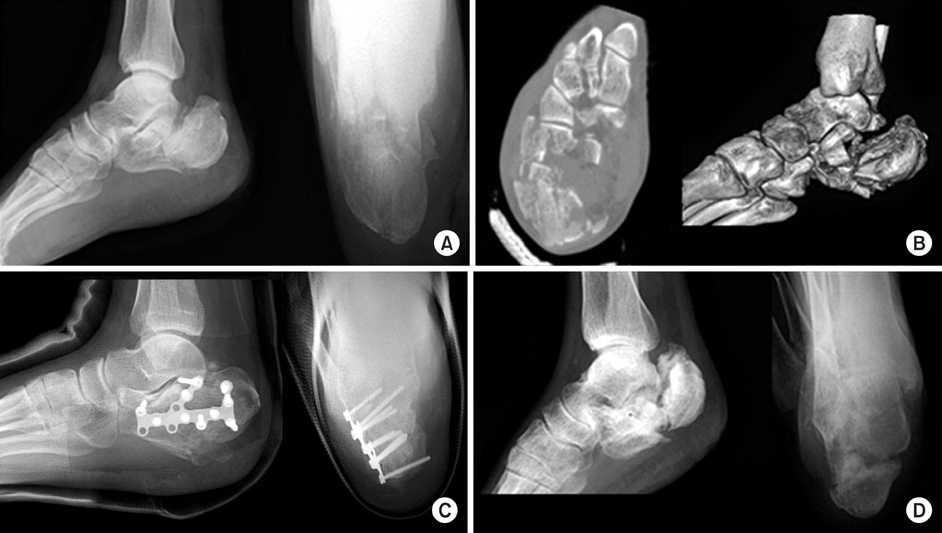

Figure 2

A 45-year-old male patient sustained right open comminuted intra-articular calcaneus fracture by fall down from 6 meter height.

(A) Preoperative X-ray shows joint depression type intra-articular calcaneal fracture with negative Böhler angle.

(B) Preoperative semicoronal and 3D CT scan shows Sanders type IV calcaneal fracture.

(C) Postoperative X-ray shows restoration of Böhler angle and stable fixation.

(D) Postoperative X-ray shows varus change of heel and malunion of calcaneus and losses of corrections.

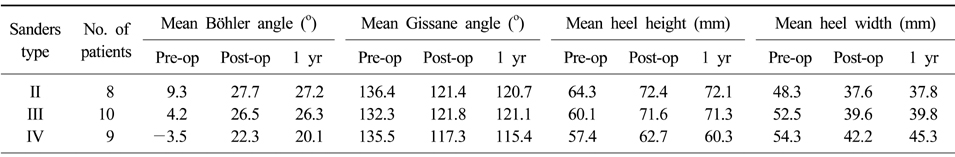

Table 1
