Original Article
Fracture-Dislocation of the Carpometacarpal Joint with the Fracture of Hamate: Jin Woong Yi, M.D., Whan Young Chung, M.D., Woo Suk Lee, M.D., Cheol Yong Park, M.D., Youn Moo Heo, M.D.; Journal of the Korean Fracture Society 2008;21(4):297-303.
DOI: https://doi.org/10.12671/jkfs.2008.21.4.297
Published online: October 31, 2008

Department of Orthopedic Surgery, Konyang University College of Medicine, Daejeon, Korea.

Address reprint requests to: Youn Moo Heo, M.D. Department of Orthopedic Surgery, Konyang University Hospital, 685, Gasuwon-dong, Seo-gu, Daejeon 302-241, Korea. Tel: +82-42-600-6937, 9120, Fax: +82-42-545-2373, hurym@kyuh.co.kr

• Received: June 3, 2008 • Accepted: July 16, 2008

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

128 Views
0 Download
2 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Purpose
To evaluate the classification and treatment results about the injury of carpometacarpal (CMC) joint with the fracture of hamate.
Materials and Methods
The authors categorized into 3 types (I, II, III) according to the location of injured CMC joint and type II was subdivided into 2 type (a, b) according to the size of coronal fragment of hamate fracture-type I: fracture-dislocation of 5th CMC joint with small-sized fragment or avulsion fracture of hamate, type IIa: fracture-dislocation of 4th and 5th CMC joint with small-sized fragment or avulsion fracture of hamate, type IIb: fracture-dislocation of 4th and 5th CMC joint with coronal fracture of hamate body presenting an oblique or coronal splitting fracture, and type III: type II injury associated with injury of 3rd CMC joint or coronal plane fracture of capitate. All cases were carried out the operative treatment. And radiologic results and clinical results were evaluated.
Results
Type I were 2 cases, type IIa 4, type IIb 5, and type III 3. Twelve of 14 cases were excellent or good results, 1 case (type III) was fair, and 1 case (type IIa) was poor. All cases obtained anatomic reduction of CMC joint. But, the posttraumatic arthritis was observed in 1 case (poor) and the displacement of non-fixed hamate fragment was observed in 1 case (fair).
Conclusion
We think that it may get more favorable outcomes by the fixation of the relative large fragment of hamate with anatomical reduction of CMC joint.
Key words: Hamate, Carpometacarpal joint, Fracture-Dislocation

REFERENCES

1. Ahmad S, Plancher KD. Carpometacarpal dislocations of the fingers. Oper Tech Sports Med, 1996;4:257-267.
2. Baek GH, Chung MS, Ahn BW, Jun DS, Shin JH. Unstable hamatometacarpal fracture-dislocation: classification and treatment. J Korean Soc Surg Hand, 1999;4:19-28.
3. Cain JE Jr, Shepler TR, Wilson MR. Hamatometacarpal fracture-dislocation: classification and treatment. J Hand Surg Am, 1987;12:762-767.
4. Choi JY, Shin HK, Son KM, Ko CS. Operative treatment in fracture-dislocations of carpometacarpal joints. J Korean Fract Soc, 2005;18:443-451.
5. Cooney WP, Linscheid RL, Dobyns JH. Triangular fibrocartilage tears. J Hand Surg Am, 1994;19:143-154.
6. Ebraheim NA, Skie MC, Savolaine ER, Jackson WT. Coronal fracture of the body of the hamate. J Trauma, 1995;38:169-174.
7. Fakin RR, Fraser AM, Pimpalnerkar AL. Hamate fracture with dislocation of the ring and little finger metacarpals. J Hand Surg Br, 1998;23:96-97.
8. Gillespy T 3rd, Stork JJ, Dell PC. Dorsal fracture of the hamate: distinctive radiographic appearance. AJR Am J Roentgenol, 1988;151:351-353.
9. Hirano K, Inoue G. Classification and treatment of hamate fractures. Hand Surg, 2005;10:151-157.
10. Hodgson PD, Shewring DJ. The 'Metacarpal Cascade Lines'; use in the diagnosis of dislocations of the carpometacarpal joints. J Hand Surg Eur Vol, 2007;32:277-281.
11. Jang JS, Park HW, Yang KH, Jeon CH. Dislocation of fifth carpometacarpal joint: two case report. J Korean Soc Fract, 1990;3:275-279.
12. Kaneko K, Ono A, Uta S, et al. Hamatometacarpal fracture-dislocation: distinctive three dimensional computed tomographic appearance. Chir Main, 2002;21:41-45.
13. Kinnett JG, Lyden JP. Posterior fracture-dislocation of the IV metacarpal hamate articulation: case report. J Trauma, 1979;19:290-291.
14. Liaw Y, Kalnins G, Kirsh G, Meakin I. Combined fourth and fifth metacarpal fracture and fifth carpometacarpal joint dislocation. J Hand Surg Br, 1995;20:249-252.
15. Loth TS, McMillan MD. Coronal dorsal hamate fractures. J Hand Surg Am, 1988;13:616-618.
16. Milch H. Fracture of the hamate bone. J Bone Joint Surg Am, 1934;16:459-462.
17. Robison JE, Kaye JJ. Simultaneous fractures of the capitate and hamate in the coronal plane: case report. J Hand Surg Am, 2005;30:1153-1155.
18. Roche S, Lenehan B, Street J, O'Sullivan M. Fourth metacarpal base fracture in association with coronal hamate fracture. Injury Extra, 2005;36:316-318.
19. Schwartz GB. Displaced dorsal coronal fracture of the hamate. Orthop Rev, 1989;18:875-877.
20. Zoltie N. Fractures of the body of the hamate. Injury, 1991;22:459-462.

Fig. 1

Type I injury.

(A) Preoperative radiographs show base fracture of 5th metacarpals, avulsion fracture of hamate and dislocation of 5th carpometacarpal joint.

(B) Anatomic reduction was achieved by closed reduction and percutaneous fixation with K-wires.

Fig. 2

(A) Type IIa injury with dorsal subluxation of 4th & 5th carpometacarpal joints and avulsion fracture of hamate.

(B) Open reduction and internal fixation with K-wires was treated.

Fig. 3

(A) Type IIb injury with subluxation of 4th & 5th carpometacarpal joints and coronal splitting fracture of hamate body.

(B) Fragment of hamate fracture was fixed with Acutrak screw.

Fig. 4

Type III injury. Preoperative radiograph (A) and CT (B) show coronal plane fracture of hamate & capitate, dorsal subluxation of 3rd/4th/5th carpometacarpal joints, and base fracture of 3rd & 4th metacarpals.

(C) Good result was achieved by open reduction and internal fixation with K-wires and mini-screws.

Fig. 5

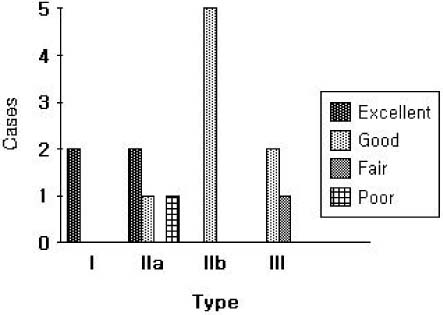

Functional results by modified Mayo Score. One of type IIa cases was poor result that associated with fracture of 4th metacarpal neck and severe comminuted fracture of 5th metacarpal base. And one of type III cases was fair result because decreased motion of wrist and pain were caused by displacement of hamate fragment.
