Duk-Hwan Kho; Ki-Hwan Kim; Hyeung-June Kim; Dong-Heon Kim

doi:10.12671/jkfs.2008.21.3.232

Articles

Page Path: HOME > J Musculoskelet Trauma > Volume 21(3); 2008 > Article

Original Article
Bipolar Hemiarthroplasty Using Calcar Replacement Stem for Hip Fractures in the Elderly: Duk-Hwan Kho, M.D., Ki-Hwan Kim, M.D., Hyeung-June Kim, M.D., Dong-Heon Kim, M.D.; Journal of the Korean Fracture Society 2008;21(3):232-239.
DOI: https://doi.org/10.12671/jkfs.2008.21.3.232
Published online: July 31, 2008

Department of Orthopedic Surgery, Konkuk University Chungju Hospital, College of Medicine, Konkuk University, Chungju, Korea.

Address reprint requests to: Dong-Heon Kim, M.D. Department of Orthopedic Surgery, Konkuk University Chungju Hospital, College of Medicine, Konkuk University, 620-5, Gyohyeondong, Chungju 380-704, Korea. Tel: 82-43-840-8251, Fax: 82-43-844-7300, kdkim@kku.ac.kr

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

36 Views
0 Download
4 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Purpose
To evaluate the results of bipolar hemiarthroplasty using calcar replacement stem for hip fractures in elderly patients.
Materials and Methods
Between March 1995 and March 2005, the clinical records on 68 cases more than 75 years old who underwent the bipolar hemiarthroplasty using calcar replacement stem and followed minimum 2 years were reviewed. We evaluated the results by modified Harris hip score, walking ability, activity of daily living, complications, osteoporosis and radiologic findings.
Results
The mean postoperative modified Harris hip score was 88.3 (69~95) in femoral neck fractures and 83.5 (63~91) in femoral intertrochanteric fractures. Walking ability was recovered in 82.3% (56 cases) and activity of daily living was achived in 82.3% (56 cases). Complications were thigh pain, infection, femoral stem subsidence, stress shield, dislocation.
Conclusion
We consider bipolar hemiarthroplasty using calcar replacement stem for unstable hip fractures in elderly patients with severe osteoporosis is the useful treatment in view of the stable and rigid fixation, early ambulation and the low rate of complications, even if the operation is technically very difficult.
Key words: Elderly, Hip fracture, Calcar replacement stem, Bipolar hemiarthroplasty

REFERENCES

1. Bohr H, Schaadt O. Bone mineral content of femoral bone and the lumbar spine measured in women with fracture of the femoral neck by dual photon absorptiometry. Clin Orthop Relat Res, 1983;(179):240-245.
2. Brooker AF, Bowerman JW, Robinson RA, Riley LH Jr. Ectopic ossification following total hip replacement. Incidence and a method of classification. J Bone Joint Surg Am, 1973;55:1629-1632.
3. Campbell AC, Rorabeck CH, Bourne RB, Chess D, Nott L. Thigh pain after cementless hip arthroplasty. Annoyance or ill omen. J Bone Joint Surg Br, 1992;74:63-66.
4. Cook PJ, Exton-Smith AN, Blockehust JC, Lempert-Barder SM. Fractured femurs, falls and bone disorders. J R Coll Physicians Lond, 1982;16:45-49.
5. Engh CA, Bovyn JD. Principles, techniques, results, and complications with a porous-coated sintered metal system. Instr Course Lect, 1986;35:169-183.
6. Engh CA, Bovyn JD, Glassman AH. Porous coated hip replacement. The factor governing bone ingrowth, stress shielding and clinical results. J Bone Joint Surg Br, 1987;69:45-55.
7. Engh CA, Massin P, Surthers KE. Roentgenographic assessment of the biologic fixation of porous-surfaced femoral components. Clin Orthop Relat Res, 1990;257:107-128.
8. Engh CA, McGorvern TF, Bobyn JD, Harris WH. A quantitative evaluation of periprosthetic bone-remolding after cementless total hip arthroplasty. J Bone Joint Surg Am, 1992;74:1009-1020.
9. Evans EM. The treatment of trochanteric fractures of the femur. J Bone Joint Surg Am, 1949;31:190-203.
10. Ganz DA, Bao Y, Shekelle PG, Rubensteion LZ. Will my patient fall? JAMA, 2007;297:77-86.
11. Garden RS. Low angle fixation in fractures of the femoral head. J Bone Joint Surg Br, 1961;43:647-663.
12. Gingras MB, Clarke J, Evarts CM. Prosthetic replacement in femoral neck fractures. Clin Orthop Relat Res, 1980;(152):147-157.
13. Gruen TA, McNeice GM, Amstutz HC. "Modes of failure" of cemented stem-type femoral components: a radiographic analysis of loosening. Clin Orthop Relat Res, 1979;(141):17-27.
14. Harris WH, Allen JR. The calcar replacement femoral component for total hip arthroplasty: design, uses and surgical technique. Clin Orthop Relat Res, 1981;(157):215-224.
15. Head WC, Emerson RH Jr, Higgins LL. A titanium cementless calcar replacement prosthesis in revision surgery of the femur: 13-year experience. J Arthroplasty, 2001;16:8 suppl 1. 183-187.
16. Healy WL. Hip implant selection for total hip arthroplasty in elderly patients. Clin Orthop Relat Res, 2002;(405):54-64.
17. Hinchey JJ, Day PL. Primary prosthetic replacement in fresh femoral-neck fractures. A review of 294 consecutive cases. J Bone Joint Surg Am, 1964;46:223-240.
18. McLaughlin JR, Harris WH. Revision of the femoral component of a total hip arthroplasty with the calcar-replacement femoral component. Result after a mean of 10.8 years postoperatively. J Bone Joint Surg Am, 1996;78:331-339.
19. Kaplan PA, Montesi SA, Gregory PR. Bone-ingrowth hip prostheses in asymptomatic patients: radiographic features. Radiology, 1988;169:221-227.
20. Kim KW, Ahn SH. Elderly trochanteric fractures -principles of treatment-. J Korean Fract Soc, 1994;7:227-234.
21. Kitamura S, Hasegawa Y, Suzuki S, et al. Functional outcome after hip fracture in Japan. Clin Orthop Relat Res, 1998;(348):29-36.
22. Konstantoulakis C, Anastopoulos G, Papaeliou A, Tsoutsanis A, Asimakopoulos A. Uncemented total hip arthroplasty in the elderly. Int Orthop, 1999;23:334-336.
23. Koval KJ, Meek R, Schemitch E, Liporace F, Strauss E, Zuckerman JD. An AOA critical issue. Geriatric trauma: young Ideas. J Bone Joint Surg Am, 2003;85-A:1380-1388.
24. Koval KJ, Skorron ML, Aharonoff GB, Meadows SE, Zackerman JR. Ambulatory ability after hip fracture. A prospective study in geriatric patients. Clin Orthop Relat Res, 1995;(310):150-159.
25. Koval KJ, Zuckerman JD. Functional recovery after fracture of the hip. J Bone Joint Surg Am, 1994;76:751-758.
26. McAuley JP, Moore KD, Culpepper WJ 2nd, Engh CA. Total hip arthroplasty with porous coated prosthesis fixed without cement in patients who are sixty-five-years of age and older. J Bone Joint Surg Am, 1998;80:1648-1655.
27. Mulliken BD, Boume RB, Rorabeck CH, Nayak N. Results of the cementless Mallory-Head primary total hip arthroplasty: a 5 to 7 year review. Iowa Orthop J, 1996;16:20-34.
28. Park SW, Park JW. Clinical study for the stress shielding in porous coated femoral stem. J Korean Orthop Assoc, 1993;28:1331-1338.
29. Parvizi J, Holiday AD, Ereth MH, Lewallen DG. The Frank Stinchfield Award. Sudden death during primary hip arthroplasty. Clin Orthop Relat Res, 1999;369:39-48.
30. Singh M, Nagraphy AR, Maini PS. Changes in trabecular pattern of the upper end of the femur as an index of osteoporosis. J Bone Joint Surg Am, 1970;52:457-467.
31. Squires B, Bannister G. Displaced intracapsular neck of femur fractures in mobile independent patients: total hip replacement or hemiarthroplasty? Injury, 1999;30:345-348.
32. Yoon ES, Min HJ, Suh JS. Comparison of clinical results between bipolar hemiarthroplasty and compression hip screw on unstable intertrochanteric fractures of the femur in elderly patients. J Korean Fract Soc, 2004;17:214-220.

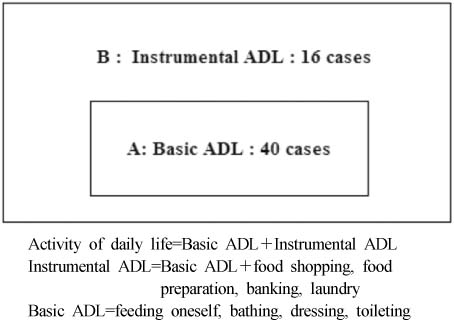

Fig. 1

Recovery of activity of daily life.

Fig. 2

(A, B) Preoperative both hip anteroposterior and left hip lateral radiography of 88 year-old female patient shows Garden Type IV femur neck fracture.

(C, D) After 28 months follow up bony union has been achieved and the stem is tightly fitted after bipolar hemiarthroplasty using calcar replacement stem with figure of eight and cerclage wiring.

Fig. 3

(A, B) Preoperative both hip anteroposterior and right hip lateral radiography of 78 year-old female patient shows Evans unstable femur intertrochanteric fracture.

(C, D) After 14 months follow up bony union has been achieved and the stem is tightly fitted after bipolar hemiarthroplasty using calcar replacement stem with cerclage wiring and Dall-Miles cable.

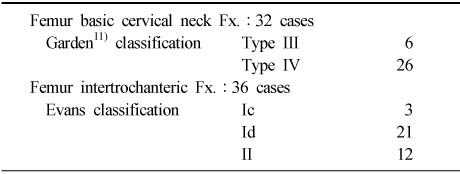

Table 1

Type of hip fracture

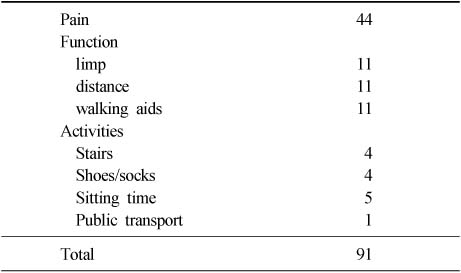

Table 2

Modified Harris hip score. The score is multiplied by 1.1 to give an assessment out of 100

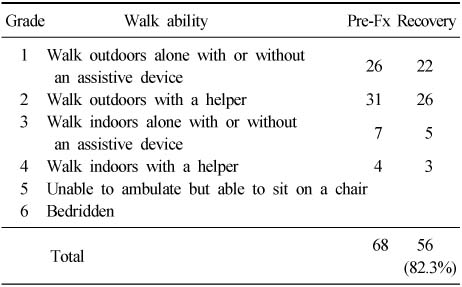

Table 3

Recovery of walking ability

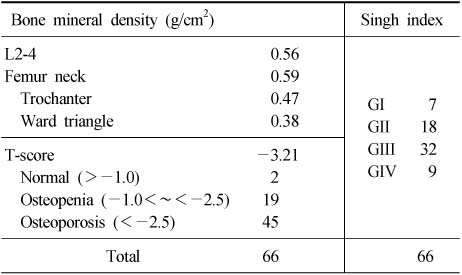

Table 4

Osteoporosis by BMD and Singh index

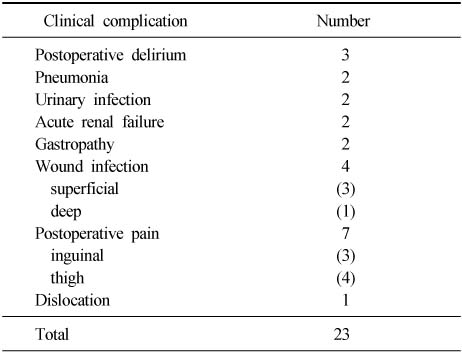

Table 5

Postoperative complication
