Original Article
- Posterior-Posterior Dual Plates Fixation for the Distal Humerus Fractures
- Yoon-Min Lee, M.D., Seok-Whan Song, M.D., Ph.D., Ki-Bum Choi, M.D., Yoo-Joon Sur, M.D., Ph.D., Sung-Eun Kim, M.D.
-
Journal of the Korean Fracture Society 2013;26(4):254-260.
DOI: https://doi.org/10.12671/jkfs.2013.26.4.254
Published online: October 18, 2013
Department of Orthopedic Surgery, Yeouido St. Mary's Hospital, The Catholic University of Korea School of Medicine, Seoul, Korea.
*Department of Orthopedic Surgery, Uijeongbu St. Mary's Hospital, The Catholic University of Korea School of Medicine, Korea.
- Address reprint requests to: Seok-Whan Song, M.D., Ph.D. Department of Orthopedic Surgery, Yeouido St. Mary's Hospital, The Catholic University of Korea School of Medicine, 222 Banpodaero, Seocho-gu, Seoul 137-701, Korea. Tel: 82-2-3779-1192, Fax: 82-2-783-0252, sw.song@catholic.ac.kr
• Received: December 9, 2012 • Revised: February 21, 2013 • Accepted: July 14, 2013
Copyright © 2013 The Korean Fracture Society. All rights reserved.
This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
- 140 Views
- 1 Download
- 1 Crossref
Abstract
-
Purpose
- Fractures of the distal humerus are one of the challenging injuries due to its complex anatomy and accompanied comminution. For dual plate fixation, orthogonal or parallel plating is widely used, but the better of the two is debatable. The purpose of this study was to report another fixation technique that yielded good clinical results with early bone union of distal humerus fracture, namely, posterior-posterior plate fixation.
-
Materials and Methods
- From March 2003 to March 2012, 20 patients with distal humerus fractures were treated by posterior-posterior plate fixation. The triceps reflecting approach was used with anterior transposition of the ulnar nerve. The mean age at the time of injury was 45 years (range, 26 to 78 years). By AO classification of distal humerus fractures, there were one case of A2 and B3 respectively, two cases of each A3, C1 and C3, and twelve cases of C2.
-
Results
- The mean period of complete bone union was 7.1 weeks (range, 4 to 11 weeks). The mean flexion-extension range of motion of the elbow joint at last follow-up was 116.2 degrees. The mean pronation was 81.2 degrees and supination was 83.1 degrees. Plates and screws were removed at about nine months after the initial surgery. No cases showed complications or required additional operation.
-
Conclusion
- Posterior-posterior dual plates fixation resulted in stable bicortical screw fixation, and insertion of lag screws were possible without interference. Posterior-posterior plating could be an easy and stable fixation method that provides good clinical results.
- 1. Abzug JM, Dantuluri PK. Use of orthogonal or parallel plating techniques to treat distal humerus fractures. Hand Clin, 2010;26:411-421.ArticlePubMed
- 2. Arnander MW, Reeves A, MacLeod IA, Pinto TM, Khaleel A. A biomechanical comparison of plate configuration in distal humerus fractures. J Orthop Trauma, 2008;22:332-336.ArticlePubMed
- 3. Jupiter JB, Neff U, Holzach P, Allgöwer M. Intercondylar fractures of the humerus. An operative approach. J Bone Joint Surg Am, 1985;67:226-239.ArticlePubMed
- 4. Koonce RC, Baldini TH, Morgan SJ. Are conventional reconstruction plates equivalent to precontoured locking plates for distal humerus fracture fixation? A biomechanics cadaver study. Clin Biomech (Bristol, Avon), 2012;27:697-701.ArticlePubMed
- 5. Korner J, Diederichs G, Arzdorf M, et al. A biomechanical evaluation of methods of distal humerus fracture fixation using locking compression plates versus conventional reconstruction plates. J Orthop Trauma, 2004;18:286-293.ArticlePubMed
- 6. Korner J, Lill H, Müller LP, Rommens PM, Schneider E, Linke B. The LCP-concept in the operative treatment of distal humerus fractures-biological, biomechanical and surgical aspects. Injury, 2003;34:Suppl 2. B20-B30.ArticlePubMed
- 7. Muller ME. The comprehensive classification of fractures of long bones. In: Muller ME, Allgower M, Schneider R, Willenegger H, editors. Manual of internal fixation: techniques recommended by the AO-ASIF Group. 3rd ed. Berlin: Springer-Verlag; 1991. p. 150-188.
- 8. O'Driscoll SW. Optimizing stability in distal humeral fracture fixation. J Shoulder Elbow Surg, 2005;14:186S-194S.
- 9. O'Driscoll SW. Parallel plate fixation of bicolumn distal humeral fractures. Instr Course Lect, 2009;58:521-528.
- 10. Sanchez-Sotelo J, Torchia ME, O'Driscoll SW. Complex distal humeral fractures: internal fixation with a principle-based parallel-plate technique. J Bone Joint Surg Am, 2007;89:961-969.
- 11. Schemitsch EH, Tencer AF, Henley MB. Biomechanical evaluation of methods of internal fixation of the distal humerus. J Orthop Trauma, 1994;8:468-475.Article
- 12. Self J, Viegas SF, Buford WL Jr, Patterson RM. A comparison of double-plate fixation methods for complex distal humerus fractures. J Shoulder Elbow Surg, 1995;4:10-16.Article
- 13. Shin SJ, Sohn HS, Do NH. A clinical comparison of two different double plating methods for intraarticular distal humerus fractures. J Shoulder Elbow Surg, 2010;19:2-9.Article
- 14. Stoffel K, Cunneen S, Morgan R, Nicholls R, Stachowiak G. Comparative stability of perpendicular versus parallel double-locking plating systems in osteoporotic comminuted distal humerus fractures. J Orthop Res, 2008;26:778-784.ArticlePubMed
- 15. Throckmorton TW, Zarkadas PC, Steinmann SP. Distal humerus fractures. Hand Clin, 2007;23:457-469.ArticlePubMed
- 16. Zalavras CG, Vercillo MT, Jun BJ, Otarodifard K, Itamura JM, Lee TQ. Biomechanical evaluation of parallel versus orthogonal plate fixation of intra-articular distal humerus fractures. J Shoulder Elbow Surg, 2011;20:12-20.ArticlePubMed
REFERENCES
Fig. 1
(A) Initial radiographs show a distal humerus fracture with comminution (AO classification C2).
(B) Fracture site was well reduced and fixed with posterior-posterior dual plates.
(C) Last follow-up radiographs
Figure & Data
REFERENCES
Citations
Citations to this article as recorded by
- Does posterior configuration have similar strength as parallel configuration for treating comminuted distal humerus fractures? A cadaveric biomechanical study
Chien-An Shih, Fa-Chuan Kuan, Kai-Lan Hsu, Chih-Kai Hong, Cheng-Li Lin, Ming-Long Yeh, Wei-Ren Su
BMC Musculoskeletal Disorders.2021;[Epub] CrossRef
Cite
XML DownloadPosterior-Posterior Dual Plates Fixation for the Distal Humerus Fractures
Fig. 1
(A) Initial radiographs show a distal humerus fracture with comminution (AO classification C2).
(B) Fracture site was well reduced and fixed with posterior-posterior dual plates.
(C) Last follow-up radiographs
Fig. 2
(A) Initial radiographs show fixation failure with anterior angulation and nonunion of the fracture site.
(B) At postoperation 12 weeks, union was achieved at the nonunion site.
Fig. 1
Fig. 2
Posterior-Posterior Dual Plates Fixation for the Distal Humerus Fractures

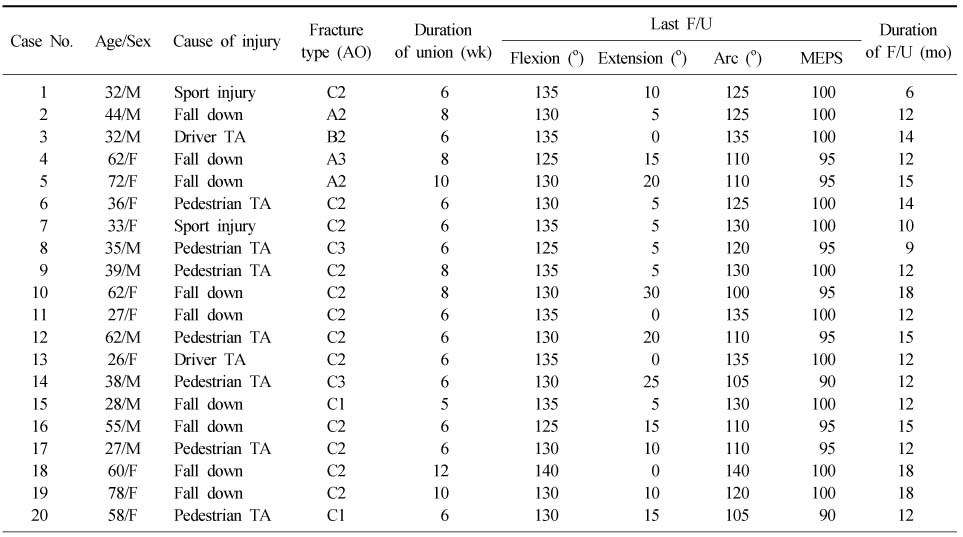

Summary of Cases
MEPS: Mayo elbow performance score, F/U: Follow up, M: Male, F: Female, TA: Traffic accident.
Table 1
Summary of Cases
MEPS: Mayo elbow performance score, F/U: Follow up, M: Male, F: Female, TA: Traffic accident.
