Myung-Sik Park; Young-Jin Lim; Young-Sin Kim; Kyu-Hyung Kim; Hong-Man Cho

doi:10.12671/jkfs.2009.22.2.91

Articles

Page Path: HOME > J Musculoskelet Trauma > Volume 22(2); 2009 > Article

Original Article
Treatment of the Proximal Femoral Fractures with Proximal Femoral Nail Antirotation (PFNA): Myung-Sik Park, M.D., Young-Jin Lim, M.D., Young-Sin Kim, M.D., Kyu-Hyung Kim, M.D., Hong-Man Cho, M.D.; Journal of the Korean Fracture Society 2009;22(2):91-97.
DOI: https://doi.org/10.12671/jkfs.2009.22.2.91
Published online: April 30, 2009

Department of Orthopaedic Surgery, Medical School, Research Institute of Clinical Medicine, Chonbuk National University, Jeonju, Korea.

^*Department of Orthopaedic Surgery, Daejeon Veterans Hospital, Daejeon, Korea.

Address reprint requests to: Young-Jin Lim, M.D. Department of Orthopaedic Surgery, Chonbuk National University Hospital, 634-18, Guemam-dong, Deokjin-gu, Jeonju 561-712, Korea. Tel: 82-63-250-1760, Fax: 82-63-271-6538, lyj2834@naver.com

• Received: November 28, 2008 • Accepted: March 7, 2009

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

125 Views
0 Download
10 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Purpose
To analyze the clinical and radiologic results of treatments in proximal femoral fracture with Proximal Femoral Nail-Antirotation (PFNA).
Materials and Methods
We retrospectively reviewed the results of 21 cases of proximal femoral fracture treated with PFNA from September 2006 to October 2007 which could be followed up for minimum of more than a year. The mean age was 61.5 (20~88) years old. Male were involved in 12 cases, female in 9 cases. The mean follow up was 14.3 (12~18) months. The Garden alignment index, Cleveland index, tip apex distance were evaluated by post-operative radiologic evaluation and complications of bone union, failure of internal fixation and deformity were evaluated by follow up radiologic findings. Clinical results were assessed by social function score of Jensen and mobility score of Parker and Palmer at last follow up.
Results
All fractures were united and the mean time to bone union was 15.7 (13~18) weeks. Garden alignment index showed good results of above 'good' in 15 cases (71.4%), Cleveland index showed 14 cases (66.4%) positioning in zone 5 and tip apex distance showed 17.81 (±5.65~27.52) mm in radiologic findings. The mean sliding of blade was 1.32 (0.34~2.94) mm in follow up radiologic findings and fracture of distal locking screw area was found in 1 case as a complication. Among 21 cases, the function before injury was completely recovered in 15 cases (71.4%) which were assessed by social function score of Jensen and 13 cases (61.9%) by mobility score of Parker and Palmer.
Conclusion
We think that PFNA is effective osteosynthetic device for proximal femur fracture with satisfactory radiologic and clinical outcomes.
Key words: Femur, Proximal femoral fracture, Proximal Femoral Nail-Antirotation (PFNA)

REFERENCES

1. Ahn SJ, Park JH. Proximal femoral nail (PFN) for the treatment of the femoral trochanteric fracture. J Korean Fract Soc, 2004;17:7-12.Article
2. Bannister GC, Gibson AG, Ackroyd CE, Newman JH. The fixation and prognosis of trochanteric fractures. A randomized prospective controlled trial. Clin Orthop Relat Res, 1990;254:242-246.
3. Baumgaertner MR, Curtin SL, Lindskog DM, Keggi JM. The value of the tip-apex distance in predicting failure of fixation of peritrochanteric fractures of the hip. J Bone Joint Surg Am, 1995;77:1058-1064.Article
4. Boldin C, Seibert FJ, Fankhauser F, Peicha G, Grechenig W, Szyszkowitz R. The proximal femoral nail (PFN) - a minimal invasive treatment of unstable proximal femoral fractures: a prospective study of 55 patients with a follow-up of 15 months. Acta Orthop Scand, 2003;74:53-58.Article PubMed
5. Cleveland M, Bosworth DM, Thompson FR, Wilson HJ Jr, Ishizuka T. A ten-year analysis of intertrochanteric fractures of the femur. J Bone Joint Surg Am, 1959;41:1399-1408.Article PubMed
6. Den Hartog BD, Bartal E, Cooke F. Treatment of the unstable intertrochanteric fracture. Effect of the placement of the screw, its angle of insertion, andosteotomy. J Bone Joint Surg Am, 1991;73:726-733.Article PubMed
7. Friedl W, Colombo-Benkmann M, Dockter S, Machens HG, Mieck U. Gamma nail osteosynthesis of per- and subtrochanteric femoral fractures. 4 years experiences and their consequences for further implant development. Chirurg, 1994;65:953-963.
8. Han HJ, Yu HJ. The gamma nail for unstable peritrochanteric fractures. J Korean Soc Fract, 1996;9:76-80.Article
9. Hardy DC, Descamps PY, Krallis P, et al. Use of an intramedullary hip-screw compared with a compression hip-screw with a plate for intertrochanteric femoral fracutres. A prospective, randomized study of one hundred patients. J Bone Joint Surg Am, 1998;80:618-630.
10. Ito K, Hungerbühler R, Wahl D, Grass R. Improved intramedullarynail interlocking in osteoporotic bone. J Orthop Trauma, 2001;15:192-196.Article PubMed
11. Jensen JS. Determining factors for the mortality following hip fractures. Injury, 1984;15:411-414.Article PubMed
12. Lawton JO, Baker MR, Dickson RA. Femoral neck fractures-two populations. Lancet, 1983;2:70-72.PubMed
13. Lenich A, Mayr E, Rüter A. Hip replacement after failed internal fixation in patients with proximal femur fracture--a simple procedure? Zentralbl Chir, 2002;127:503-506.Article
14. Melton JL 3rd, Ilstrup DM, Riggs BL, Beckenbaugh RD. Fifty year trend in hip fracture incidence. Clin Orthop Relat Res, 1982;162:144-149.
15. Moon YW, Suh DH, Kang ST, Kwon DJ, Ji YN, Lee KB. The proximal femoral nail for intertrochantericfracture of the femur. J Korean Soc Fract, 2003;16:29-36.
16. Nuber S, Schönweiss T, Rüter A. Stabilisation of unstable trochanteric femoral fractures. Dynamic hip screw (DHS) with trochanteric stabilisation plate vs. proximal femur nail (PFN). Unfallchirurg, 2003;106:39-47.PubMed
17. Parker MJ, Palmer CR. A new mobility score for predicting mortality after hip fracture. J Bone Joint Surg Br, 1993;75:797-798.PubMed
18. Sommers MB, Roth C, Hall H, et al. A laboratory model toevaluate cutout resistance of implants for pertrochanteric fracture fixation. J Orthop Trauma, 2004;18:361-368.PubMed
19. Strauss E, Frank J, Lee J, Kummer FJ, Tejwani N. Helical blade versus sliding hip screw for treatment ofunstable intertrochanteric hip fractures: a biomechanical evaluation. Injury, 2006;37:984-989.PubMed
20. Whitelaw GP, Segal D, Sanzone CF, Ober NS, Hadley N. Unstable intertrochanteric/subtrochantericfractures of the femur. Clin Orthop Relat Res, 1990;252:238-245.
21. Lenich A, Mayr E, Rüter A, Möckl Ch, Füchtmeier B. First results with the Trochanter Fixation Nail (TFN): a report on 120 case. Arch Orthop Trauma Surg, 2006;126:706-712.PubMed

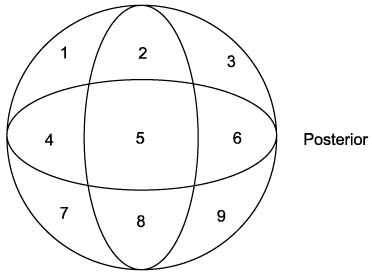

Fig. 1

For the Cleveland Index. The femoral head (axial view) was divided into nine zone to document the position of the tip of the blade.

Fig. 2

The tip apex distance (TAD) is measured between the tip of the helical blade and the cortex of the femural head in the line of the head and neck fragment. The distance has to be measured in the anteroposterior and the axial view.

Fig. 3

(A) Preoperative anteroposterior radiograph of the left hip of a 22 years old man, showing an combined femur shaft and neck fracture.

(B) Postoperative radiograph after fixation with a PFNA.

(C) Radiograph made 6 months postoperatively showing a healed fracture.

(D) Radiograph made 18 months postoperatively after hardware removal.

Fig. 4

(A) Preoperative anteroposterior radiograph of the left hip of a 72 years old man who slip down, showing an intertrochanter fracture AO type A3-3.

(B) Postoperative radiograph after fixation with a PFNA.

(C) Radiograph made 3 months postoperatively showing a periprosthetic fracture at the distal locking screw.

(D) Radiograph made postoperatively after conversion to intramedullary nail.

Table 1

Patient data profile

^*Inter: Intertrochanter femur fracture, ^†A: AO/ASIF classification, ^‡Sub: Subtrochanter femur fracture, ^§S: Seinshiemer classification, ^∥TAD: Tip apex distance.

Table 2

Garden alignment Index

Table 3

The Assessment of Social Function of Jensen

Table 4

The Assessment of Mobility Score of Parker and Palmer
