Review Article
Biomechanics of the Wrist: Young Ho Shin, M.D., Young Ho Lee, M.D., Ph.D.; Journal of the Korean Fracture Society 2016;29(1):93-100.
DOI: https://doi.org/10.12671/jkfs.2016.29.1.93
Published online: January 19, 2016

Department of Orthopedic Surgery, Seoul National University College of Medicine, Seoul, Korea.

Address reprint requests to: Young Ho Lee, M.D., Ph.D. Department of Orthopedic Surgery, Seoul National University Hospital, 101 Daehakro, Jongno-gu, Seoul 03080, Korea. Tel: 82-2-2072-0819, Fax: 82-2-740-2718, orthoyhl@snu.ac.kr

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

192 Views
3 Download
2 Crossref

Full Article

Download PDF

Abstract
NOTES
REFERENCES

Abstract

The wrist joint is a complicated structure composed of many bones and ligaments. Therefore, understanding the anatomy and the biomechanics of the wrist is important in order to administer proper treatment for patients. To easily understand the complicated structure, there were many trials to unite the complicated structure with a simple group such as the carpal row concept and the carpal column concept. Movement and load transfer along the wrist joint occurs with balanced action between carpal bones. To evaluate this static equilibrium, measuring tools such as carpal height ratio are used. When wrist flexion/extension occurs, each carpal row moves synchronously with action of the scaphoid. In contrast with flexion/extension, when wrist radial deviation/ulnar deviation occurs, the proximal carpal row moves in the sagittal plane, instead of the coronal plane. Recently, the dart throwing motion which occurred from the position of dorsiflexion with radial deviation to volar flexion with ulnar deviation is considered the main movement of the wrist joint.
Key words: Wrist joint, Carpal bones, Anatomy, Biomechanics, Range of motion

None.

REFERENCES

1. Erhart S, Schmoelz W, Arora R, Lutz M. The biomechanical effects of a deepened articular cavity during dynamic motion of the wrist joint. Clin Biomech (Bristol, Avon), 2012;27:557-561.Article PubMed
2. Berdia S, Wolfe SW. Effects of scaphoid fractures on the biomechanics of the wrist. Hand Clin, 2001;17:533-540. vii-viii.Article PubMed
3. Moritomo H, Apergis EP, Garcia-Elias M, Werner FW, Wolfe SW. International Federation of Societies for Surgery of the Hand 2013 Committee's report on wrist dart-throwing motion. J Hand Surg Am, 2014;39:1433-1439.Article PubMed
4. Evarts CM. Surgery of the musculoskeletal system. New York: Churchill Livingstone; 1983.
5. Tang JB. General concepts of wrist biomechanics and a view from other species. J Hand Surg Eur Vol, 2008;33:519-525.Article PubMed PDF
6. Taleisnik J. Classification of carpal instability. Bull Hosp Jt Dis Orthop Inst, 1984;44:511-531.PubMed
7. Palmer AK, Werner FW. Biomechanics of the distal radioulnar joint. Clin Orthop Relat Res, 1984;187:26-35.Article
8. Strauch RJ. Scapholunate advanced collapse and scaphoid nonunion advanced collapse arthritis: update on evaluation and treatment. J Hand Surg Am, 2011;36:729-735.Article PubMed
9. Youm Y, Flatt AE. Kinematics of the wrist. Clin Orthop Relat Res, 1980;149:21-32.Article
10. Wang YC, Tseng YC, Chang HY, Wang YJ, Chen CJ, Wu DY. Gender differences in carpal height ratio in a taiwanese population. J Hand Surg Am, 2010;35:252-255.Article PubMed
11. Schuind F, Eslami S, Ledoux P. Kienbock's disease. J Bone Joint Surg Br, 2008;90:133-139.PubMed
12. Bouman HW, Messer E, Sennwald G. Measurement of ulnar translation and carpal height. J Hand Surg Br, 1994;19:325-329.Article PubMed PDF
13. Malone PS, Cooley J, Morris J, Terenghi G, Lees VC. The biomechanical and functional relationships of the proximal radioulnar joint, distal radioulnar joint, and interosseous ligament. J Hand Surg Eur Vol, 2015;40:485-493.Article PubMed PDF
14. Ishii S, Palmer AK, Werner FW, Short WH, Fortino MD. Pressure distribution in the distal radioulnar joint. J Hand Surg Am, 1998;23:909-913.Article PubMed
15. Hotchkiss RN, An KN, Sowa DT, Basta S, Weiland AJ. An anatomic and mechanical study of the interosseous membrane of the forearm: pathomechanics of proximal migration of the radius. J Hand Surg Am, 1989;14:256-261.Article PubMed
16. Moojen TM, Snel JG, Ritt MJ, Venema HW, Kauer JM, Bos KE. In vivo analysis of carpal kinematics and comparative review of the literature. J Hand Surg Am, 2003;28:81-87.Article PubMed
17. Wolfe SW, Neu C, Crisco JJ. In vivo scaphoid, lunate, and capitate kinematics in flexion and in extension. J Hand Surg Am, 2000;25:860-869.Article PubMed
18. Landsmeer JM. Studies in the anatomy of articulation. II. Patterns of movement of bi-muscular, bi-articular systems. Acta Morphol Neerl Scand, 1961;3:304-321.PubMed
19. Chung MS, Seong SC, Choi IH. Textbook of fractures. 3rd ed. Seoul: Koonja publishing Co; 2008. p. 285-307.
20. Nanno M, Buford WL Jr, Patterson RM, Andersen CR, Viegas SF. Three-dimensional analysis of the ligamentous attachments of the first carpometacarpal joint. J Hand Surg Am, 2006;31:1160-1170.Article PubMed
21. Viegas SF, Yamaguchi S, Boyd NL, Patterson RM. The dorsal ligaments of the wrist: anatomy, mechanical properties, and function. J Hand Surg Am, 1999;24:456-468.Article PubMed
22. Kijima Y, Viegas SF. Wrist anatomy and biomechanics. J Hand Surg Am, 2009;34:1555-1563.Article PubMed
23. Rajan PV, Day CS. Scapholunate Interosseous Ligament Anatomy and Biomechanics. J Hand Surg Am, 2015;40:1692-1702.Article PubMed
24. Berger RA, Imeada T, Berglund L, An KN. Constraint and material properties of the subregions of the scapholunate interosseous ligament. J Hand Surg Am, 1999;24:953-962.Article PubMed
25. Patterson RM, Yazaki N, Andersen CR, Viegas SF. Prediction of ligament length and carpal diastasis during wrist flexion-extension and after simulated scapholunate instability. J Hand Surg Am, 2013;38:509-518.Article PubMed PMC
26. Salva-Coll G, Garcia-Elias M, Hagert E. Scapholunate instability: proprioception and neuromuscular control. J Wrist Surg, 2013;2:136-140.PubMed PMC
27. Tang JB, Ryu J, Han JS, Omokawa S, Kish V, Wearden S. Biomechanical changes of the wrist flexor and extensor tendons following loss of scaphoid integrity. J Orthop Res, 1997;15:69-75.Article PubMed
28. Moritomo H, Murase T, Goto A, Oka K, Sugamoto K, Yoshikawa H. Capitate-based kinematics of the midcarpal joint during wrist radioulnar deviation: an in vivo three-dimensional motion analysis. J Hand Surg Am, 2004;29:668-675.Article PubMed
29. Wolfe SW, Crisco JJ, Orr CM, Marzke MW. The dartthrowing motion of the wrist: is it unique to humans? J Hand Surg Am, 2006;31:1429-1437.Article PubMed PMC
30. Lee S, Kim YS, Park CS, et al. CT-based three-dimensional kinematic comparison of dart-throwing motion between wrists with malunited distal radius and contralateral normal wrists. Clin Radiol, 2014;69:462-467.Article PubMed
31. Leventhal EL, Moore DC, Akelman E, Wolfe SW, Crisco JJ. Carpal and forearm kinematics during a simulated hammering task. J Hand Surg Am, 2010;35:1097-1104.Article PubMed PMC
32. Werner FW, Short WH, Palmer AK, Sutton LG. Wrist tendon forces during various dynamic wrist motions. J Hand Surg Am, 2010;35:628-632.Article PubMed PMC
33. Brigstocke GH, Hearnden A, Holt C, Whatling G. In-vivo confirmation of the use of the dart throwers motion during activities of daily living. J Hand Surg Eur Vol, 2014;39:373-378.Article PubMed PDF

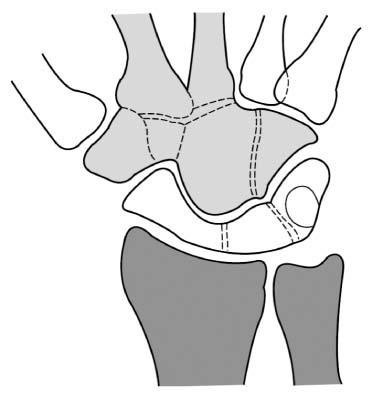

Fig. 1

Row concept of carpal bones. The joints with adjacent bones which do not have gross motion, considered as a single motor unit. The proximal row is composed of scaphoid, lunate, and triquetrum. The distal row is composed of trapezium, trapezoid, capitate, and hamate.

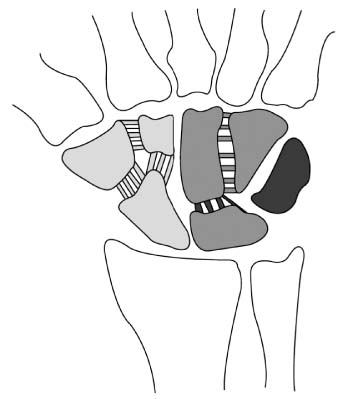

Fig. 2

Column concept of carpal bones. The lateral column is composed of scaphoid, trapezium, and trapezoid. The middle column is composed of lunate and capitate, and the medial column is composed of triquetrum and hamate.

Fig. 3

Scaphoid nonunion advanced collapse. Left wrist simple radiograph of a 53-year-old man. The advanced degenerative changes are evident around the radiocarpal joint with scaphoid nonunion.

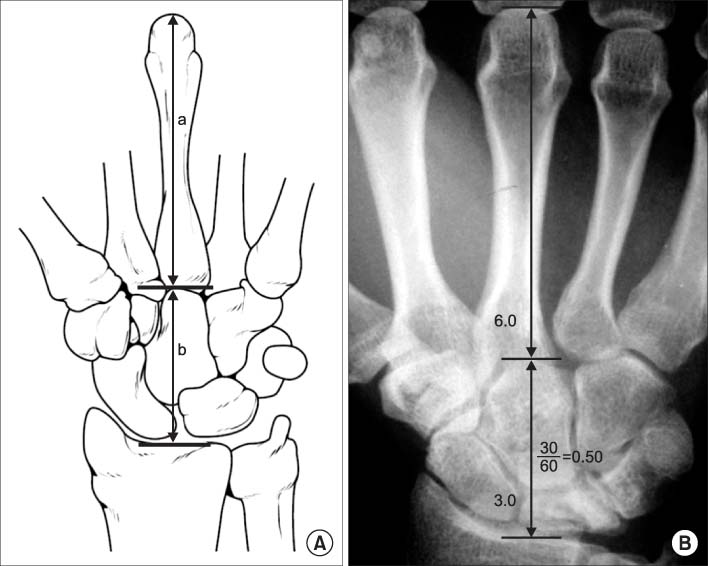

Fig. 4

Carpal height ratio. (A) Carpal height ratio is calculated by dividing carpal height (b) with length of the 3rd metacarpal bone (a). (B) A simple radiograph of measurement of carpal height ratio.

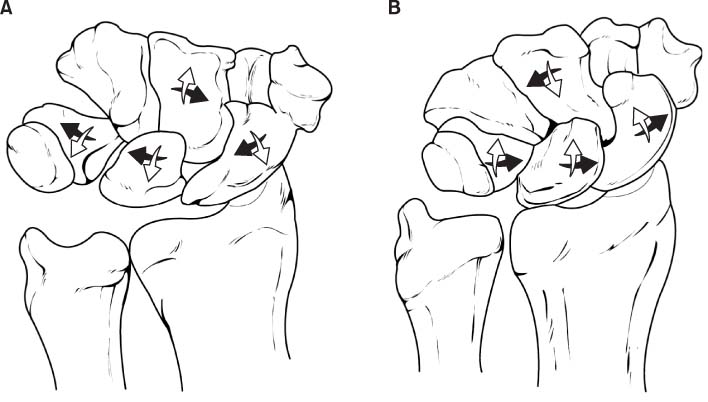

Fig. 5

Movement of carpal rows during radial deviation and ulnar deviation. (A) During radial deviation of the wrist joint, the proximal carpal row is flexed volarly and deviated radially, and the distal carpal row is flexed dorsally. (B) During ulnar deviation of the wrist joint, the proximal carpal row is flexed dorsally and deviated ulnarly, and the distal carpal row is flexed volarly.

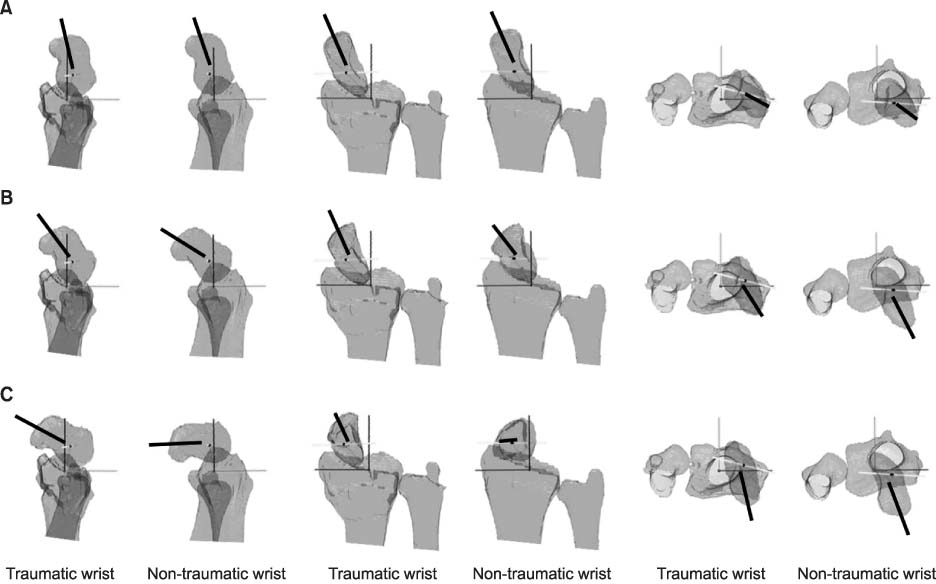

Fig. 6

Computed tomography based three dimensional kinematic comparison of the scaphoid during dart throwing motion between distal radius fracture malunion and contralateral normal side. (A) Radial deviation and dorsal tilt position. (B) Mid-range of dart throwing motion. (C) Ulnar deviation and volar tilt position. The orientations of the helical axes (bold line of each figure) of the scaphoid are different between two sides.

Figure & Data

REFERENCES

Citations

Citations to this article as recorded by

Association between carpal height ratio and ulnar variance in normal wrist radiography
Anas AR Altamimi, Monther A. Gharaibeh, Muntaser Abu Shokor, Moh’d S. Dawod, Mohammad N. Alswerki, Omar M. Al-Odat, Raghda H. Elkhaldi
BMC Musculoskeletal Disorders.2024;[Epub] CrossRef
Reliability and concurrent validity of a new iPhone® goniometric application for measuring active wrist range of motion: a cross‐sectional study in asymptomatic subjects
Mohammad Reza Pourahmadi, Ismail Ebrahimi Takamjani, Javad Sarrafzadeh, Mehrdad Bahramian, Mohammad Ali Mohseni‐Bandpei, Fatemeh Rajabzadeh, Morteza Taghipour
Journal of Anatomy.2017; 230(3): 484. CrossRef

Cite

CITE: export Copy Download Format; Close

Download Citation

Download a citation file in RIS format that can be imported by all major citation management software, including EndNote, ProCite, RefWorks, and Reference Manager.

Format:

RIS — For EndNote, ProCite, RefWorks, and most other reference management software
BibTeX — For JabRef, BibDesk, and other BibTeX-specific software

Include:

Citation for the content below
Citation and abstract for the content below

Biomechanics of the Wrist

J Korean Fract Soc. 2016;29(1):93-100. Published online January 31, 2016

DOI: https://doi.org/10.12671/jkfs.2016.29.1.93

XML Download

Figure

We recommend

Biomechanics of the Wrist

Fig. 1 Row concept of carpal bones. The joints with adjacent bones which do not have gross motion, considered as a single motor unit. The proximal row is composed of scaphoid, lunate, and triquetrum. The distal row is composed of trapezium, trapezoid, capitate, and hamate.

Fig. 2 Column concept of carpal bones. The lateral column is composed of scaphoid, trapezium, and trapezoid. The middle column is composed of lunate and capitate, and the medial column is composed of triquetrum and hamate.

Fig. 3 Scaphoid nonunion advanced collapse. Left wrist simple radiograph of a 53-year-old man. The advanced degenerative changes are evident around the radiocarpal joint with scaphoid nonunion.

Fig. 4 Carpal height ratio. (A) Carpal height ratio is calculated by dividing carpal height (b) with length of the 3rd metacarpal bone (a). (B) A simple radiograph of measurement of carpal height ratio.

Fig. 5 Movement of carpal rows during radial deviation and ulnar deviation. (A) During radial deviation of the wrist joint, the proximal carpal row is flexed volarly and deviated radially, and the distal carpal row is flexed dorsally. (B) During ulnar deviation of the wrist joint, the proximal carpal row is flexed dorsally and deviated ulnarly, and the distal carpal row is flexed volarly.

Fig. 6 Computed tomography based three dimensional kinematic comparison of the scaphoid during dart throwing motion between distal radius fracture malunion and contralateral normal side. (A) Radial deviation and dorsal tilt position. (B) Mid-range of dart throwing motion. (C) Ulnar deviation and volar tilt position. The orientations of the helical axes (bold line of each figure) of the scaphoid are different between two sides.
