Original Article Does the Use of a Silicone Ring Tourniquet Help Reduce Bleeding in the Minimally Invasive Internal Fixation with Locking Plate for Distal Femoral Fractures?
Ki-Bong Park, Hong-Ki Jin, Il-Yeong Hwang, Sung-Who Chang, Sung-Cheon Na
Journal of Musculoskeletal Trauma 2020;33(3):148-153.
DOI: https://doi.org/10.12671/jkfs.2020.33.3.148
Published online: July 31, 2020
1Department of Orthopedic Surgery, Ulsan University Hospital, University of Ulsan College of Medicine, Ulsan, Korea
2Department of Orthopedic Surgery, Good Samsun Hospital, Busan, Korea

prev next
  • 165 Views
  • 0 Download
  • 1 Crossref
  • 0 Scopus
prev next
Full Article

Download PDF Download PDF

Abstract

Purpose
This study evaluated the usefulness of a silicone ring tourniquet by analyzing the changes in the perioperative hemoglobin (Hb) levels or amount of perioperative bleeding compared to those of a pneumatic tourniquet or no usage during minimally invasive plate fixation for distal femoral fractures.
Materials and Methods
From January 2017 to December 2019, 30 patients who underwent minimally invasive plate fixation using a locking compression plate for distal femoral fractures were evaluated and classified as a silicone ring tourniquet (Group 1), a pneumatic tourniquet (Group 2), and no usage (Group 3). The variables for analysis were age, sex, preoperative Hb (preHb), postoperative 72-hour Hb (postHb), differences between preHb and postHb (preHb-postHb), amount of intraoperative and overall transfusion, estimated unit of transfusion corrected by preHb-postHb and total transfusion (Hb-lost), amount of intraoperative and postoperative and total bleeding. One-way ANOVA was used to identify the differences between the groups.
Results
The age, sex, operation time, preHb, preHb-postHb, amount of intraoperative and overall transfusion and Hb-lost were similar in the two groups. The amount of intraoperative bleeding was significantly lower in Group 1 than Group 3 (p=0.004), but there was no difference in the amount of postoperative and total bleeding between the two groups.
Conclusion
The use of a silicone ring tourniquet in the minimally invasive plate fixation for distal femoral fractures decreased the amount of intraoperative bleeding compared to no use of a tourniquet.


J Korean Fract Soc. 2020 Jul;33(3):148-153. Korean.
Published online Jul 24, 2020.
https://doi.org/10.12671/jkfs.2020.33.3.148
Copyright © 2020 The Korean Fracture Society. All rights reserved.
Original Article

Does the Use of a Silicone Ring Tourniquet Help Reduce Bleeding in the Minimally Invasive Internal Fixation with Locking Plate for Distal Femoral Fractures?

Ki-Bong Park, M.D., Hong-Ki Jin, M.D.,* Il-Yeong Hwang, M.D., Sung-Who Chang, M.D. and Sung-Cheon Na, M.D.
    • Department of Orthopedic Surgery, Ulsan University Hospital, University of Ulsan College of Medicine, Ulsan, Korea.
    • *Department of Orthopedic Surgery, Good Samsun Hospital, Busan, Korea.
  • Correspondence to: Ki-Bong Park, M.D. Department of Orthopedic Surgery, Ulsan University Hospital, University of Ulsan College of Medicine, 877 Bangeojinsunhwando-ro, Dong-gu, Ulsan 44033, Korea. Tel: +82-52-250-7129, Fax: +82-52-235-2823, Email: kbpark@uuh.ulsan.kr
Received April 07, 2020; Revised May 20, 2020; Accepted June 16, 2020.

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

Purpose

This study evaluated the usefulness of a silicone ring tourniquet by analyzing the changes in the perioperative hemoglobin (Hb) levels or amount of perioperative bleeding compared to those of a pneumatic tourniquet or no usage during minimally invasive plate fixation for distal femoral fractures.

Materials and Methods

From January 2017 to December 2019, 30 patients who underwent minimally invasive plate fixation using a locking compression plate for distal femoral fractures were evaluated and classified as a silicone ring tourniquet (Group 1), a pneumatic tourniquet (Group 2), and no usage (Group 3). The variables for analysis were age, sex, preoperative Hb (preHb), postoperative 72-hour Hb (postHb), differences between preHb and postHb (preHb-postHb), amount of intraoperative and overall transfusion, estimated unit of transfusion corrected by preHb-postHb and total transfusion (Hb-lost), amount of intraoperative and postoperative and total bleeding. One-way ANOVA was used to identify the differences between the groups.

Results

The age, sex, operation time, preHb, preHb-postHb, amount of intraoperative and overall transfusion and Hb-lost were similar in the two groups. The amount of intraoperative bleeding was significantly lower in Group 1 than Group 3 (p=0.004), but there was no difference in the amount of postoperative and total bleeding between the two groups.

Conclusion

The use of a silicone ring tourniquet in the minimally invasive plate fixation for distal femoral fractures decreased the amount of intraoperative bleeding compared to no use of a tourniquet.

Keywords
Femoral fractures, Internal fracture fixation, Tourniquets, Hemorrhage, Hemoglobins

Figures

Fig. 1
Clinical photographs of a 51-year-old male patient who underwent surgery for distal femoral fracture of the left knee. Pneumatic tourniquet (A) and silicon ring tourniquet (B).

Fig. 2
The length from the superior margin of the patella to the distal margin of the tourniquet was 9.4 cm in pneumatic tourniquet (A) and 15.3 cm in silicon ring tourniquet (B).

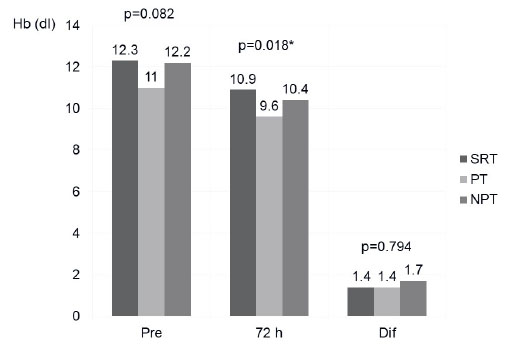

Fig. 3
Volume of hemoglobin (Hb) in each group. Pre: preoperative, 72 h: during 72 hours after surgery, Dif: difference with Pre- and 72 h-Hb, SRT: silicone ring tourniquet, PT: pneumatic tourniquet, NPT: no usage of tourniquet. *p<0.05.

Fig. 4
Volume of blood loss in each group. IO: intraoperative, PO: during 72 hours after surgery, SRT: silicone ring tourniquet, PT: pneumatic tourniquet, NPT: no usage of tourniquet. **p<0.01.

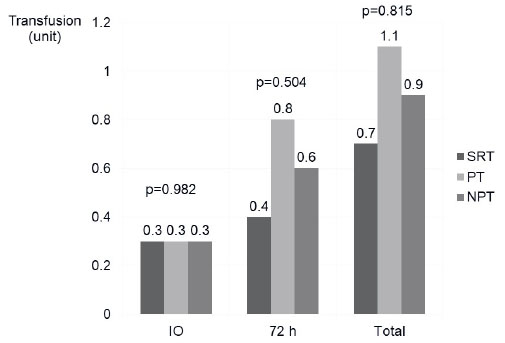

Fig. 5
Units of transfusion in each group. IO: intraoperative, 72 h: during 72 hours after surgery, SRT: silicone ring tourniquet, PT: pneumatic tourniquet, NPT: no usage of tourniquet.

Tables

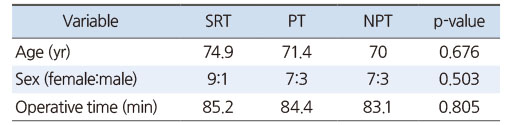

Table 1
Demographic Information and Clinical Features of Patients

Notes

Financial support:None.

Conflict of interests:None.

References

    1. Wakai A, Winter DC, Street JT, Redmond PH. Pneumatic tourniquets in extremity surgery. J Am Acad Orthop Surg 2001;9:345–351.
    1. Cunningham L, McCarthy T, O'Byrne J. A survey of upper and lower limb tourniquet use among Irish orthopaedic surgeons. Ir J Med Sci 2013;182:325–330.
    1. Smith TO, Hing CB. The efficacy of the tourniquet in foot and ankle surgery? A systematic review and meta-analysis. Foot Ankle Surg 2010;16:3–8.
    1. Zaidi R, Hasan K, Sharma A, Cullen N, Singh D, Goldberg A. Ankle arthroscopy: a study of tourniquet versus no tourniquet. Foot Ankle Int 2014;35:478–482.
    1. Franzone JM, Yang JH, Herzenberg JE. Reuse of single-use HemaClear exsanguination tourniquets: a technique note. J Long Term Eff Med Implants 2017;27:59–65.
    1. Kajja I, Bimenya GS, Eindhoven B, Jan Ten Duis H, Sibinga CT. Blood loss and contributing factors in femoral fracture surgery. Afr Health Sci 2010;10:18–25.
    1. Ehlinger M, Adam P, Abane L, Arlettaz Y, Bonnomet F. Minimally-invasive internal fixation of extra-articular distal femur fractures using a locking plate: tricks of the trade. Orthop Traumatol Surg Res 2011;97:201–205.
    1. Drosos GI, Ververidis A, Mavropoulos R, Vastardis G, Tsioros KI, Kazakos K. The silicone ring tourniquet in orthopaedic operations of the extremities. Surg Technol Int 2013;23:251–257.
    1. Christodoulou A, Terzidis I, Ploumis A, Metsovitis S, Koukoulidis A, Toptsis C. Supracondylar femoral fractures in elderly patients treated with the dynamic condylar screw and the retrograde intramedullary nail: a comparative study of the two methods. Arch Orthop Trauma Surg 2005;125:73–79.
    1. Dar GN, Tak SR, Kangoo KA, Halwai MA. Bridge plate osteosynthesis using dynamic condylar screw (DCS) or retrograde intramedullary supracondylar nail (RIMSN) in the treatment of distal femoral fractures: comparison of two methods in a prospective randomized study. Ulus Travma Acil Cerrahi Derg 2009;15:148–153.
    1. Paraschou S, Anastasopoulos H, Chatziliadis G, et al. A74 Comparative study between dynamic condylar screw and retrograde intramedullary nail for the treatment of femoral supracondylar fractures. Injury 2011;42 Suppl 3:S20.
    1. Gao K, Gao W, Huang J, et al. Retrograde nailing versus locked plating of extra-articular distal femoral fractures: comparison of 36 cases. Med Princ Pract 2013;22:161–166.
    1. Imam MA, Torieh A, Matthana A. Double plating of intra-articular multifragmentary C3-type distal femoral fractures through the anterior approach. Eur J Orthop Surg Traumatol 2018;28:121–130.
    1. Bai Z, Gao S, Hu Z, Liang A. Comparison of clinical efficacy of lateral and lateral and medial double-plating fixation of distal femoral fractures. Sci Rep 2018;8:4863
    1. Bisaccia M, Caraffa A, Rinonapoli G, et al. Feasibility and value of non-locking retrograde nail vs. locking retrograde nail in fixation of distal third femoral shaft fractures: radiographic, bone densitometry and clinical outcome assessments. Med Glas (Zenica) 2020;17:163–169.
    1. Pereira A, Hendriks S, Facca S, Bodin F, Gay A, Liverneaux P. Evaluation of a new tourniquet for hand surgery: comparison of 76 carpal tunnel syndrome cases operated using a Hemaclear(®) Model-F tourniquet versus a pneumatic tourniquet. Chir Main 2015;34:73–78.
