Jae-Sung Lee; Yong-Beom Park; Han-Jun Lee

doi:10.12671/jkfs.2008.21.2.124

Articles

Page Path: HOME > J Musculoskelet Trauma > Volume 21(2); 2008 > Article

Original Article
Dual Plate Fixation Compared with Hybrid External Fixator Application for Complex Tibial Plateau Fractures: Jae-Sung Lee, M.D., Yong-Beom Park, M.D., Han-Jun Lee, M.D.; Journal of the Korean Fracture Society 2008;21(2):124-129.
DOI: https://doi.org/10.12671/jkfs.2008.21.2.124
Published online: April 30, 2008

Department of Orthopedic Surgery, Chung-Ang University College of Medicine, Seoul, Korea.

Address reprint requests to: Han-Jun Lee, M.D. Department of Orthpedic Sugery, Yong-San Hospital, 65-207, Hangangro 3-ga, Yongsan-gu, Seoul 140-757, Korea. Tel: 82-2-748-9774(9563), Fax: 82-2-793-6634, gustinolhj@hanafos.com

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

44 Views
0 Download

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Purpose
To cmpare the clinical results of complex tibial plateau fractures treated by hybrid external fixation and dual plate fixation.
Materials and Methods
We studied forty patients with Schatzker type V and VI fractures respectively and selected twenty seven patients who were followed at least one year between January 2000 and December 2005. We evaluated the clinical results in which fourteen fractures with hybrid external fixation were compared with thirteen fractures with dual plate fixation. The clinical results were evaluated according to Knee Society Clinical Rating System and the statistical analysis was performed by Student t-test.
Results
There were no significant differences in terms of bone union time (average union time: dual plate fixation 13.8 weeks, hybrid external fixation 14.2 weeks). The quality of osseous reduction was superior in the fractures with dual plate fixation than those with hybrid external fixation. There were significant differences in functional score (average functional score: dual plate fixation 73, hybrid external fixation 62), but not in average knee score.
Conclusion
The hybrid external fixation can be a useful modality for treatment of complex proximal tibial plateau fractures. But the good quality of the fracture reduction by dual plate fixation may be a indicator for favorable prognosis for satisfactory knee function.
Key words: Tibial plateau fracture, Dual plate fixation, Hybrid external fixation

REFERENCES

1. Barei DP, Nork SE, Mills WJ, Coles CP, Henley MB, Benirschke SK. Functional outcomes of severe bicondylar tibial plateau fractures treated with dual incisions and medial and lateral plates. J Bone Joint Surg Am, 2006;88:1713-1721.
2. Barei DP, Nork SE, Mills WJ, Henley MB, Benirschke SK. Complications associated with internal fixation of high-energy bicondylar tibial plateau fractures utilizing a two-incision technique. J Orthop Trauma, 2004;18:649-657.
3. Blokker CP, Rorabeck CH, Bourne RB. Tibial plateau fractures. An analysis of the result of treatment in 60 patients. Clin Orthop Relat Res, 1984;182:193-199.
4. Canadian Orthopaedic Trauma Society. Open reduction and internal fixation compared with circular fixator application for bicondylar tibial plateau fractures. Results of a multicenter, prospective, randomized clinical trial. J Bone Joint Surg Am, 2006;88:2613-2623.
5. Drennan DB, Locher FG, Maylahn DJ. Fractures of the tibia plateau. Treatment by closed reduction and spica cast. J Bone Joint Surg Am, 1979;61:989-995.
6. Duwelius PJ, Rangitsch MR, Colville MR, Woll TS. Treatment of tibial plateau fractures by limited internal fixation. Clin Orthop Relat Res, 1997;339:47-57.
7. Fryjordet A Jr. Operative treatment of tibial condyle fractures. Acta Chir Scand, 1967;133:17-24.
8. Gaudinez RF, Mallik AR, Szporn M. Hybrid external fixation of comminuted tibial plateau fractures. Clin Orthop Relat Res, 1996;328:203-210.
9. Hutson JJ Jr, Zych GA. Infections in periarticular fractures of the lower extremity treated with tensioned wire hybrid fixators. J Orthop Trauma, 1998;12:214-218.
10. Insall JN, Dorr LD, Scott RD, Scott WN. Rationale of the knee society clinical rating system. Clin Orthop Relat Res, 1989;248:13-14.
11. Kim YY, Lee DC, Ahn JC. Results of operative treatment in fracture of the proximal tibial plateau. J Korean Soc Fract, 1997;10:823-831.
12. Kumar A, Whittle AP. Treatment of complex (Schatzker type VI) fractures of the tibial plateau with circular wire external fixation: retrospective case review. J Orthop Trauma, 2000;14:339-344.
13. Lachiewicz PF, Funick T. Factors influencing the results of open reduction and internal fixation of tibial plateau fractures. Clin Orthop Relat Res, 1990;259:210-215.
14. Mallik AR, Covall DJ, Whitelaw GP. Internal versus external fixation of bicondylar tibial plateau fractures. Orthop Rev, 1992;21:1433-1436.
15. Marsh JL, Smith ST, Do TT. External fixation and limited internal fixation for complex fractures of the tibial plateau. J Bone Joint Surg Am, 1995;77:661-673.
16. Mills WJ, Nork SE. Open reduction and internal fixation of high-energy tibial plateau fractures. Orthop Clin North Am, 2002;33:177-198.
17. Moore TM, Patzakis MJ, Harvey JP. Tibial plateau fractures: definition, demographics, treatment rationale, and long-term results of closed traction management or operative reduction. J Orthop Trauma, 1987;1:97-119.
18. Morandi MM, Pearse MF. Management of complex tibial plateau fractures with the ilizarov external fixator. Tech Orthop, 1996;11:125-131.
19. Oh CW, Kyung HS, Ihn JC, Park BC, Choi YC. Bicondylar tibial plateau fractures treated with hybrid-ring external fixator. J Korean Soc Fract, 2000;13:877-883.
20. Oh JK. Treatment of complex tibial plateau fractures. J Korean Fract Soc, 2005;18:349-358.
21. Park HG, Yoo MJ, Kim MH, Nyun WS, Chun JY. Treatment of tibial plateau fractures using ilizarov fixation (Schatzker type IV,V,VI). J Korean Fract Soc, 2004;17:230-236.
22. Pugh KJ, Wolinsky PR, Dawson JM, Stahlman GC. The biomechanics of hybrid external fixation. J Orthop Trauma, 1999;13:20-26.
23. Pugh KJ, Wolinsky PR, Pienkowski D, Banit D, Dawson JM. Comparative biomechanics of hybrid external fixation. J Orthop Trauma, 1999;13:418-425.
24. Schatzker J, McBroom R, Bruce D. The tibial plateau fracture. The toronto experience 1968-1975. Clin Orthop Relat Res, 1979;138:94-104.
25. Stamer DT, Schenk R, Staggers B, Aurori B, Behrens FF. Bicondylar tibial plateau fractures treated with a hybrid ring external fixator: a preliminary study. J Orthop Trauma, 1994;8:455-461.
26. Tscherne H, Lobenhoffer P. Tibial plateau fractures. Management and expected results. Clin Orthop Relat Res, 1993;292:87-100.
27. Waddell JP, Johnston DW, Neider A. Fractures of the plateau: a review of ninety-five patients and comparison of treatment methods. J Trauma, 2003;21:376-381.
28. Weigel DP, Marsh JL. High-energy fractures of the tibial plateau. Knee function after longer follow-up. J Bone Joint Surg Am, 2002;84:1541-1551.
29. Young MJ, Barrack RL. Complications of internal fixation of tibial plateau fractures. Orthop Rev, 1994;23:149-154.

Fig. 1

(A) Preoperative radiograph of 47 years old male shows the Schatzker type VI fracture by traffic accident.

(B) The hybrid external fixation is performed and augmented by cannulated screws.

(C) The malunion is seen at postoperative fifteen months.

Fig. 2

(A) Preoperative radiograph of 53 years old male shows the Schatzker type V fracture by traffic accident.

(B) Preoperative CT shows severe comminution and displacement of articular surface.

(C) The postoperative radiograph shows anatomical reduction of joint line.

(D) The patient has satisfactory knee function at postoperative thirteen months.

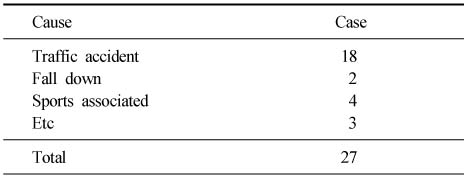

Table 1

Cause of injuries

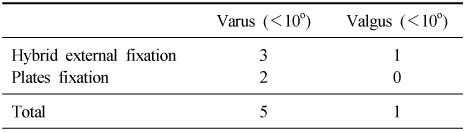

Table 2

The numbers of malunion

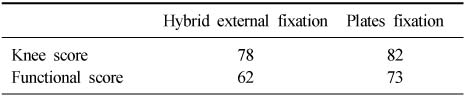

Table 3

Outcomes of the Knee Society Clinical Rating System
