Original Article
Internal Fixation Using Double Plates for Comminuted Olecranon Fractures in Adults: Hyun-Dae Shin, M.D., Jae-Hoon Yang, M.D., Pil-Sung Kim, M.D.; Journal of the Korean Fracture Society 2009;22(3):166-171.
DOI: https://doi.org/10.12671/jkfs.2009.22.3.166
Published online: July 31, 2009

Department of Orthopedic Surgery, Chungnam National University School of Medicine, Daejeon, Korea.

Address reprint requests to: Hyun-Dae Shin, M.D. Department of Orthopedic Surgery, Chungnam National University School of Medicine, 640, Daesa-dong, Jung-gu, Daejeon 301-721, Korea. Tel: 82-42-280-7349, Fax: 82-42-252-7098, hyunsd@cnu.ac.kr

• Received: November 3, 2008 • Revised: December 14, 2008 • Accepted: April 26, 2009

This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

112 Views
0 Download
5 Crossref

prev next

Full Article

Download PDF

Abstract
REFERENCES

Abstract

Purpose
To evaluate the clinical usefulness of internal fixation with double plates for comminuted olecranon fractures.
Materials and Methods
Nine patients with olecranon fractures which are classified into Mayo type IIB (7 cases) and type IIIB (2 cases) underwent internal fixation using double plates from June 2002 to September 2005. They were followed-up for more than 12 months and average period of follow-up was 14 (12~18) months. Six cases were males and three were females. Mean age was 40.7 (21~63) years. We used open reduction and internal fixation using double plates. Clinical assessment index was pain, range of motion (ROM), stability and function of joint at last follow-up. The sum of four indices were compared. Also, we evaluated starting time of full ROM exercise, bony union time and complications.
Results
All cases started postoperative ROM within 7 days and clinical results were evaluated using Mayo elbow performance index. 'Excellent', 'good' were 2, 6 cases, respectively and 1 case was 'fair'. Elbow ROM was more than 110° in all cases except one. Mean radiological bony union time was 3.9 (2.5~5) months postoperatively. There were heterotrophic ossifications in 3 cases as complication.
Conclusion
Internal fixation using double plates for comminuted olecranon fractures in adults can be good treatment option which obtains good clinical results and enables early ROM.
Key words: Olecranon comminuted fractures, Internal fixation using double plates, Early ROM

REFERENCES

1. Boyer MI, Galatz LM, Borrelli J Jr, Axelrod TS, Ricci WM. Intra-articular fractures of the upper extremity: new concepts in surgical treatment. Instr Course Lect, 2003;52:591-605.
2. Bryan RS. Fractures about the elbow in Adults. Instr Course Lect, 1981;30:200-203.
3. Cabanela ME, Morrey BF. The elbow and its disorders. In: Morrey BF, editor. Fractures of the proximal ulna and olecranon. 2nd ed. Philadelphia: WB Sauners Co; 1993. p. 405-408.
4. Coonrad RW. The elbow. Master techniques in orthopaedic surgery. In: Morrey BF, editor. Management of olecranon fractures and nonunion. 1st ed. New York: Raven Press Ltd.; 1994. p. 71-95.
5. Eriksson E, Sahlen O, Sandohl U. Late Results of Conservation and Surgical Treatment of fracture of the olecranon. Acta Chir Scand, 1957;113:153-166.
6. Fyfe IS, Mossad MM, Holdworth BJ. Methods of fixation of olecranon fractures. J Bone Joint Surg Br, 1985;67:367-372.
7. Gartsman GM, Sculo TP, Otis JC. Operative treatment of olecranon fractures. Excision or open reduction with internal fixation. J Bone Joint Surg Am, 1981;63:718-721.
8. Hak DJ, Golladay GJ. Olecranon fractures: treatment options. J Am Acad Orthop Surg, 2000;8:266-275.
9. Heim U, Pfeiffer KM. Internal fixation of small fractures. 3rd ed. Berlin/London: Springer-erlag; 1988.
10. Horne JG, Tanzer TL. Olecranon fracture: a review of 100 cases. J Trauma, 1981;21:469-472.
11. Horner SR, Sadasivan KK, Lipka JM, Saha S. Analysis of mechanical factors affecting fixation of olecranon fractures. Orthopedics, 1989;12:1469-1472.
12. Hume MC, Wiss DA. Olecranon fractures a clinical and radiographic comparison of tension band and plate fixation. Clin Orthop Relat Res, 1992;285:229-235.
13. King G, Lammens P, Milne A, Roth J, Johnson J. Plate fixation of comminuted olecranon fractures: an in vitro biomechanical study. J Shoulder Elbow Surg, 1996;5:437-441.
14. Larsen E, Lyndrup P. Netz or Kirschner pins in the treatment of olecranon fractures. J Trauma, 1987;27:664-666.
15. Lee JM, Park JH. Fractures of the olecranon of ulna treated by plating and tension band wiring technique. J Korean Soc Fract, 1996;9:801-808.
16. Gordon MJ, Budoff JE, Yeh ML, Luo ZP, Noble PC. Comminuted olecranon fractures: a comparison of plating methods. J Shoulder Elbow Surg, 2006;15:94-99.
17. Morrey BF, An KN, Chao EYS. The elbow and it's disorders. In: Morrey BF, editor. Functional evaluation of the elbow. 2nd ed. Philadelphia: WB Sauners Co; 1993. p. 86-97.
18. Muller ME, Allgöwer M, Schneider R, Willenegger H. Manual of internal fixation: techniques recommanded by AO group. 2nd ed. Berlin: Springer-Verlag; 1979.
19. Nork SE, Jones CB, Henley MB. Surgical treatment of olecranon fractures. Am J Orthop, 2001;30:577-586.
20. O'Driscoll SW. Technique for unstable olecranon fracture-subluxation. Op Tech Orthop, 1994;4:49-53.

Fig. 1

(A) Preoperative simple radiographs showed Mayo type IIB olecranon fracture.

(B) In 3D-CT, we found the comminuted and displaced fracture of olecranon.

(C) The fracture was fixed internally using double plates.

(D) On 12 months after surgery, simple radiographs show rigid fixation of fracture site and no loosening of plates.

Fig. 2

(A) On preoperative radiological evaluation, we diagnosed Mayo type IIB, comminuted olecranon fracture.

(B) Postoperative simple radiographs showing internal fixation using double plates.

(C) On 14 months after surgery, follow-up radiographs show heterotrophic ossification around olecranon, but fracture was fixed rigidly.

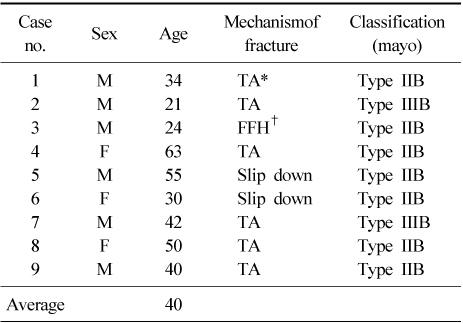

Table 1

Data of the patients

^*TA: Traffic accident, ^†FFH: Fall from height.

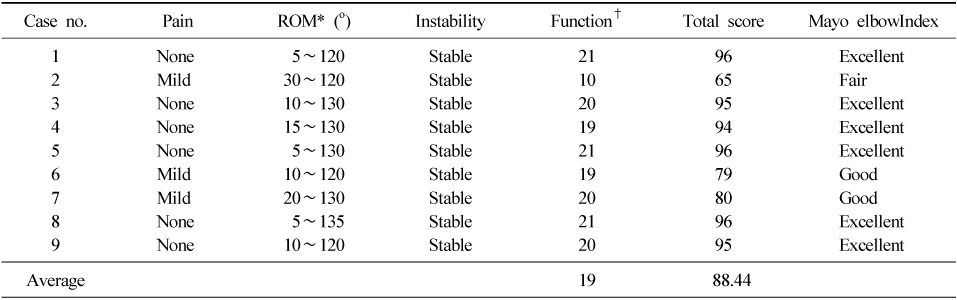

Table 2

Clinical results of each cases

^*ROM: Range of motion, ^†Comb hair, feed, hygine, shirt, shoe are 5 point respectively.

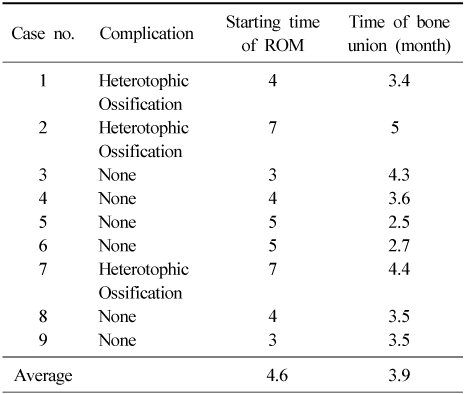

Table 3

Complications
