Simulation for Reduction of Transverse Acetabular Fractures in Sawbones Models

Article information

J Musculoskelet Trauma. 2019;32(4):196-203

Publication date (electronic) : 2019 January 10

doi : https://doi.org/10.12671/jkfs.2019.32.4.196

Seongeun Byun, M.D., Ph.D., Cyril Mauffrey, M.D., Cyril Mauffrey, M.D., FACS, FRCS ^‗, Jehyun Yoo, M.D., Ph.D.^†, Changwon Park, M.D.^‡, Jihyo Hwang, M.D., Ph.D.^,^‡

Department of Orthopaedic Surgery, CHA Bundang Medical Center, CHA University, Seongnam Korea

¹Department of Orthopaedic Surgery, Denver Health Medical Center, University of Colorado, Denver, COKorea

Department of Orthopaedic Surgery, Hallym University Sacred Heart Hospital, College of Medicine, Hallym University†, Anyang Korea

Department of Orthopaedic Surgery, Hallym University Kangnam Sacred Heart Hospital, College of Medicine, Hallym University, Seoul Korea

Correspondence to: Jihyo Hwang, M.D., Ph.D. Department of Orthopaedic Surgery, Hallym University Kangnam Sacred Heart Hospital, College of Medicine, Hallym University, 1 Singil-ro, Yeongdeungpo-gu, Seoul 07441, Korea Tel: +82-2-829-5165 Fax: +82-2-837-1728 E-mail: hwangjihyo7309@gmail.com

Received 2019 June 30; Revised 2019 August 07; Accepted 2019 October 11.

Abstract

Purpose

The transversely oriented fracture lines are very difficult to reduce during operations, even after clear exposure of the fracture site, in acetabular fractures. The purpose of this study is to verify the quality of reduction between the different subtypes (transtectal, juxtatectal, and infratectal) of transverse fractures. This study also determined the proper type of clamps to use and the proper zone for achieving accurate reductions in Sawbones models.

Materials and Methods

Six fractures in 3 different subtypes of transverse fractures were artificially created. Ten different reduction clamps were applied for reduction of the fractures. Twelve holes around the fracture were drilled for the maintenance of the clamps. The fracture displacements were measured at the extra-articular area and the intra-articular joint portion. The pictures of the intra-articular fracture displacements were taken by a camera and these were uploaded and analyzed by the TraumaCad^® computer program (Brainlab).

Results

The reduction quality was poor in order of transtectal, juxtatectal and infratectal. The intra-articular opening was more prominent in the transtectal subtype. The safe zone, when giving consideration of the neurovascular bundles, was a quadrilateral surface of the ilium. Drill holes are useful for maintenance of the reduction clamps. Reduction clamps with points (Weber clamp) were the best for maintenance and accurate reduction. Regarding the concerns of placement of clamps, the middle to posterior combination was the best. The upper hole among the posterior holes in the ilium was the most likely to well reduce the intra-articular opening.

Conclusion

Transtectal was the more complicated subtype in the aspect of reduction quality. The Weber type reduction clamp was the best for reduction by centrally located holes in the quadrilateral surface and posteriorly located iliac holes in transverse acetabular fractures. The upper hole, among the posterior holes in the ilium, was the best for reduction of the fracture displacements in the intraarticular portion of acetabulum.

Keywords: Transverse acetabular fracture; Reduction clamp; Sawbones

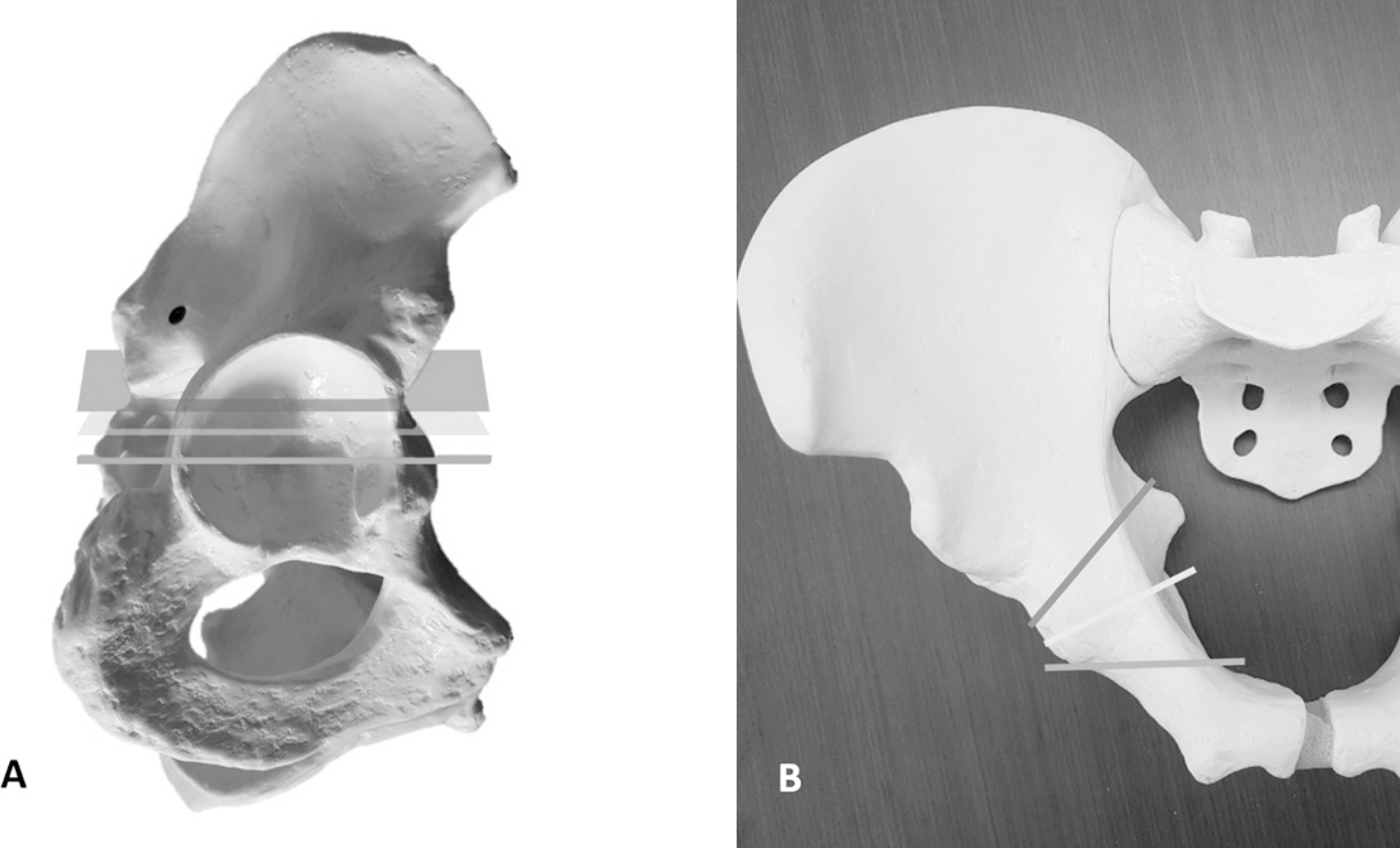

Fig. 1.

(A) The upper plane (transtectal), middle plane (juxtatectal), and lower plane (infratectal) are depicted. (B) The angle of cutting plane was 70°, 45°, and 0°, respectively.

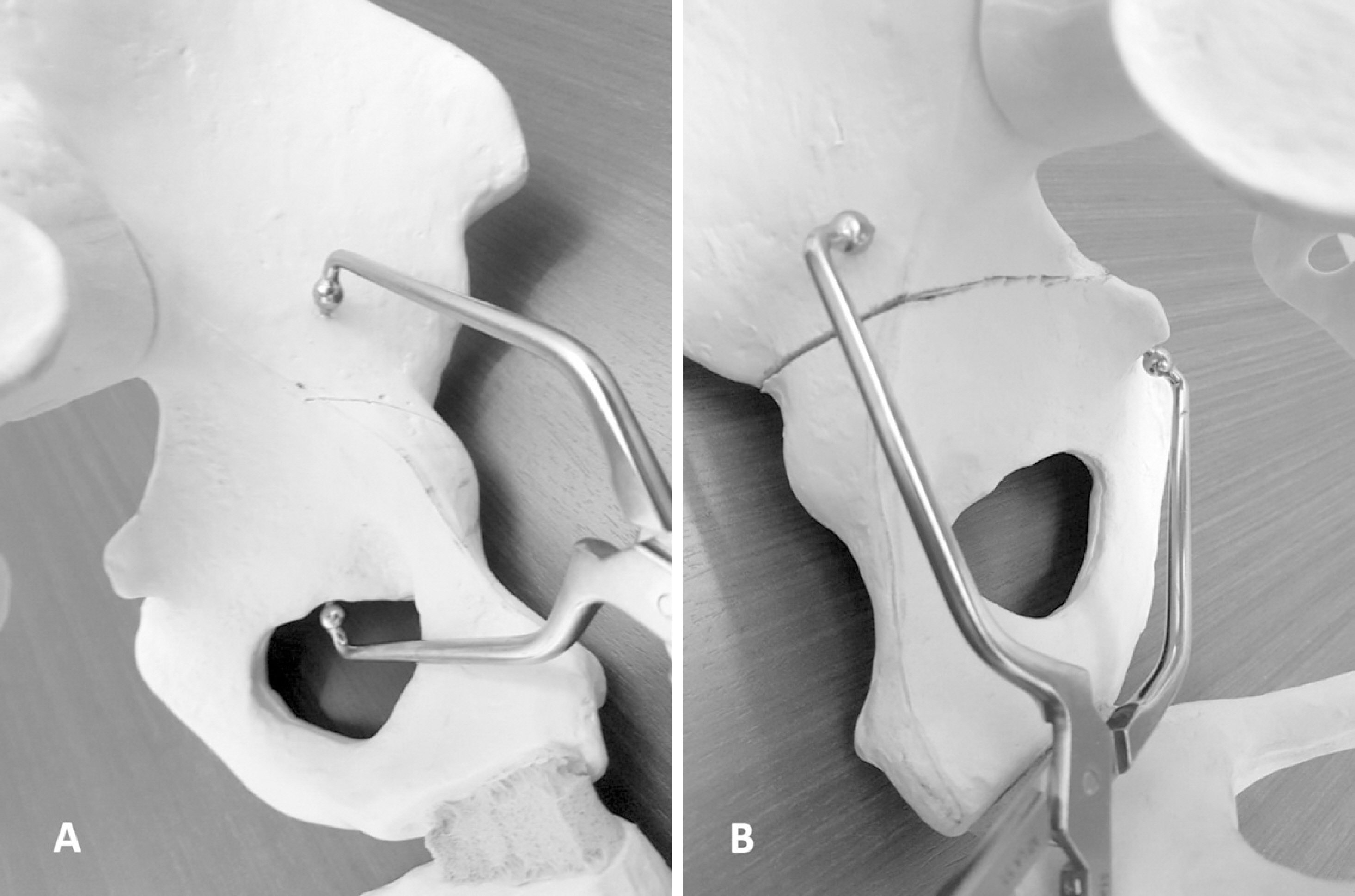

Fig. 2.

In the trial of reduction without holes, the upper margin of the obturator foramen (A) and the ishchail spine (B) was a good placement for the maintenance of clamps.

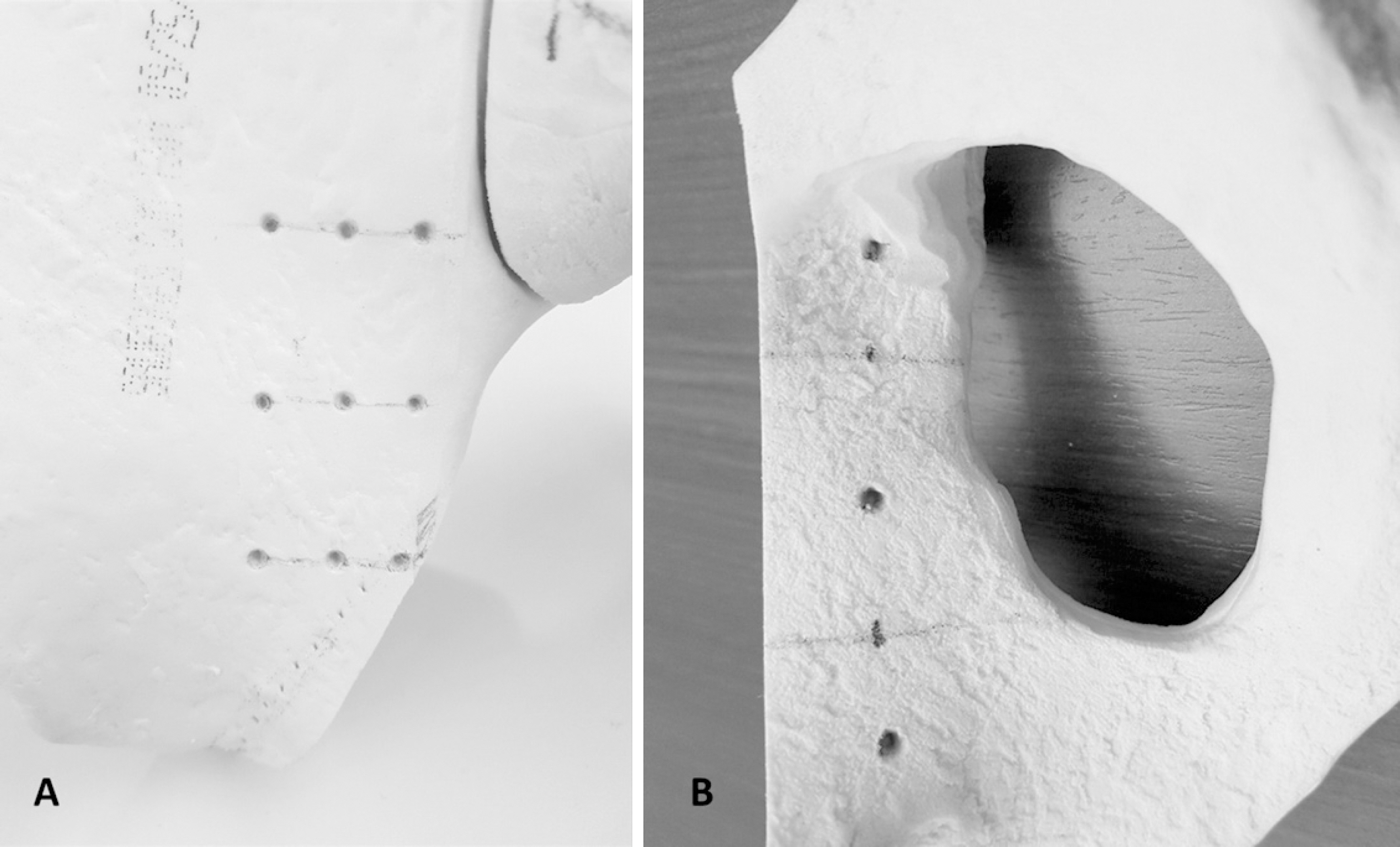

Fig. 3.

Twelve holes were created. Nine holes in the flat surface in the iliac fossa (A), and the other three holes in the quadrilateral surface (B).

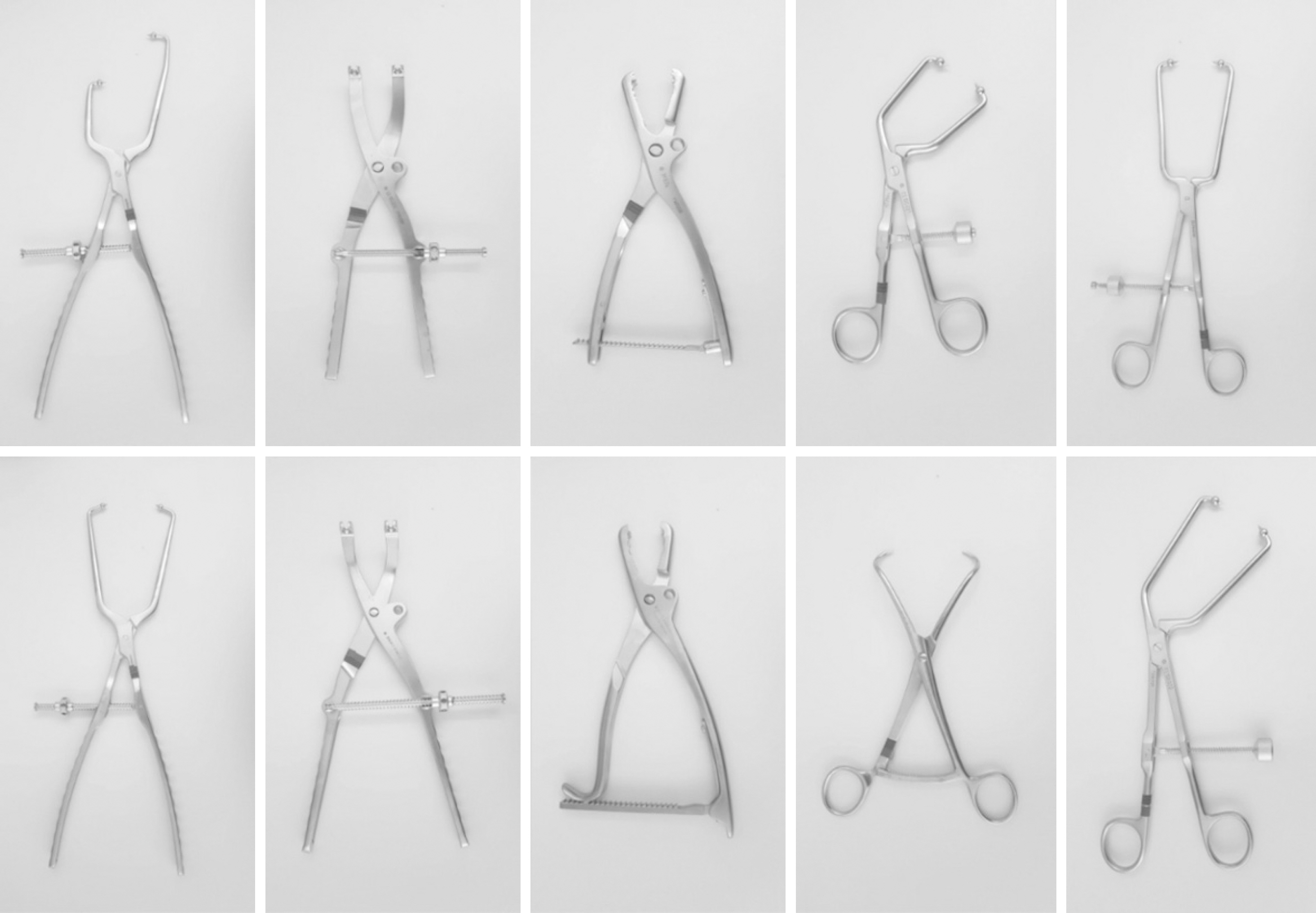

Fig. 4.

Different types of pelvic reduction clamps (Synthes).

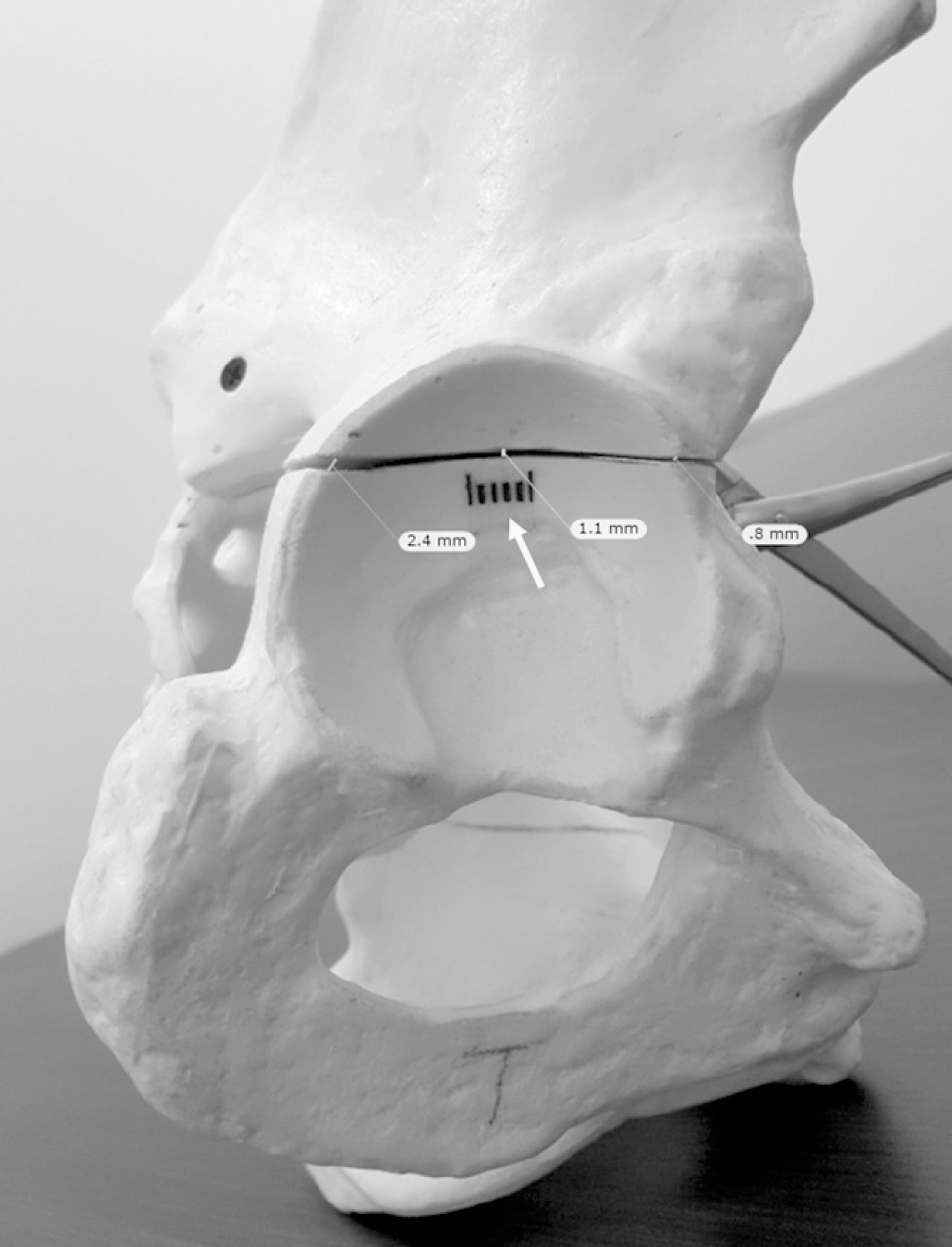

Fig. 5.

The displacement of the fracture gap was measured by Trau-maCad ^® (Brainlab), and the VascuTape^® ruler sticker (LeMaitre Vascular) (arrow) was used as a marker. The average displacements from the three points (anterior, middle, and posterior) were calculated.

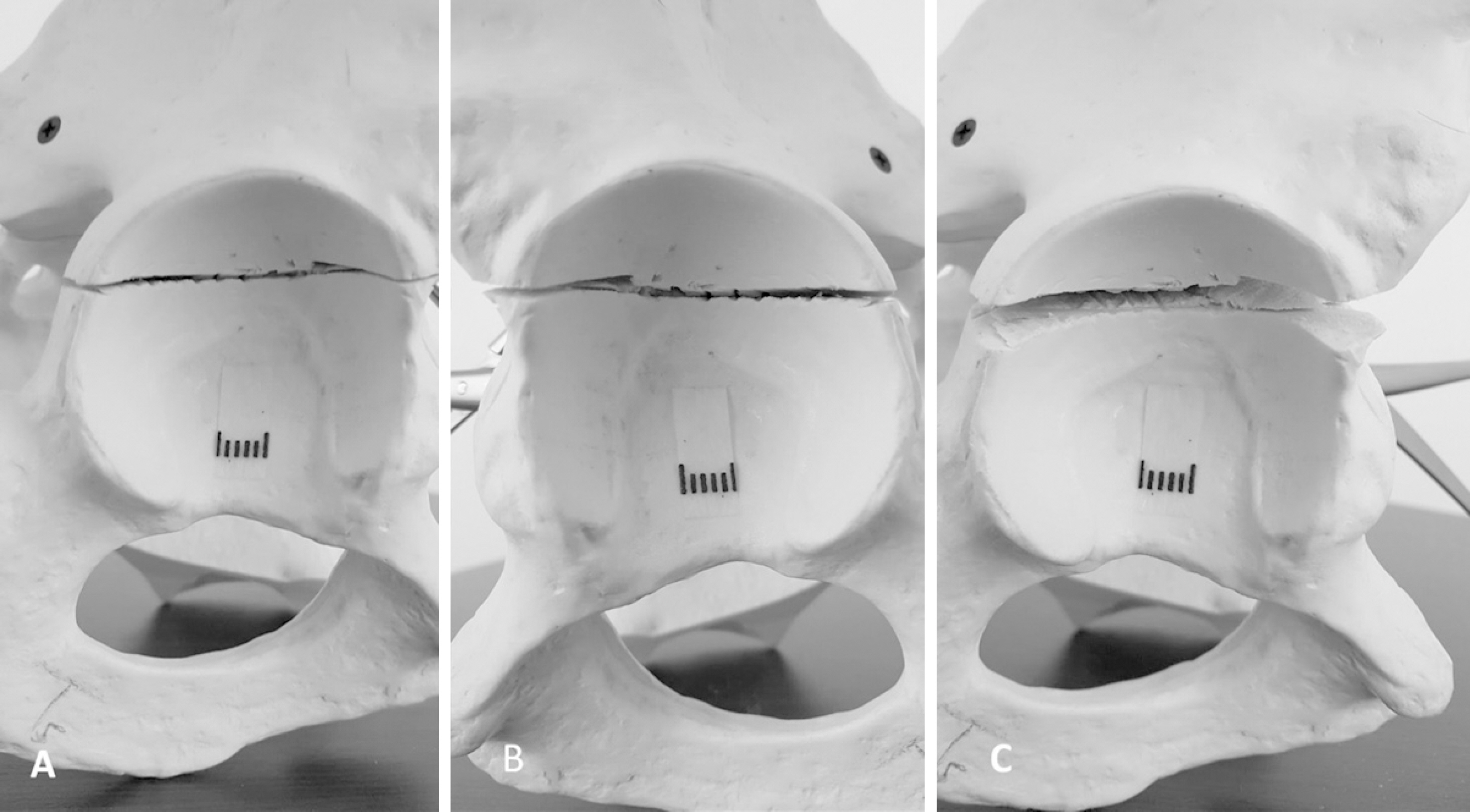

Fig. 6.

Intra-articualr joint fracture displacements were increased with the different holes in transtectal subtype. The middle to upper posterior hole (A), middle to middle posterior hole (B), and middle to bottom posterior hole (C).

Table 1.

Reduction Quality of Different Holes at Different Subtypes

Table 2.

Average Intra-Articular Opening in Different Holes at the Ilium in Transtectal Fractures

References

1. Fan L, Jin YJ, He L, Lü Z, Fan HH. [Modified Stoppa approach in treatment of pelvic and acetabular fractures]. Zhongguo Gu Shang 25:810–812. 2012;Chinese.

2. Letournel E. Acetabulum fractures: classification and management. Clin Orthop Relat Res 151:81–106. 1980;

3. Hak DJ, Hamel AJ, Bay BK, Sharkey NA, Olson SA. Consequences of transverse acetabular fracture malreduction on load transmission across the hip joint. J Orthop Trauma 12:90–100. 1998;

4. Thomas KA, Vrahas MS, Noble JW Jr, Bearden CM, Reid JS. Evaluation of hip stability after simulated transverse acetabular fractures. Clin Orthop Relat Res 340:244–256. 1997;

5. Malkani AL, Voor MJ, Rennirt G, Helfet D, Pedersen D, Brown T. Increased peak contact stress after incongruent reduction of transverse acetabular fractures: a cadaveric model. J Trauma 51:704–709. 2001;

6. Chiboub H, Lamrani O, Kharmaz M, el Yazidi A, Wahbi S, el Manouar M. [Transverse and T fractures with fracture of the posterior wall of the acetabulum. Results of orthopedic and surgical treatment. Apropos of 52 cases]. Ann Chir 52:913–917. 1998;French.

7. Ziran NM, Johnson JL, Morgan SJ, Smith WR. Femoral artery thrombosis after internal fixation of a transverse acetabular fracture in a patient with osteogenesis imperfecta type I. Patient Saf Surg 2:1. 2008;

8. Lehmann W, Hoffmann M, Fensky F, et al. What is the frequency of nerve injuries associated with acetabular fractures? Clin Orthop Relat Res 472:3395–3403. 2014;

9. Isaacson MJ, Taylor BC, French BG, Poka A. Treatment of acetabulum fractures through the modified Stoppa approach: strategies and outcomes. Clin Orthop Relat Res 472:3345–3352. 2014;

10. Iqbal F, Uddin AA, Younus S, Zia OB, Khan N. Surgical outcomes of acute acetabular transverse fracture using ilioinguinal and Stoppa approach. J Acute Dis 6:278–283. 2017;

11. Gross T, Jacob AL, Messmer P, Regazzoni P, Steinbrich W, Huegli RW. Transverse acetabular fracture: hybrid minimal access and percutaneous CT-navigated fixation. AJR Am J Roentgenol 183:1000–1002. 2004;

12. Kistler BJ, Smithson IR, Cooper SA, et al. Are quadrilateral surface buttress plates comparable to traditional forms of transverse acetabular fracture fixation? Clin Orthop Relat Res 472:3353–3361. 2014;

13. Liu H, Li L, Wu X, Xu H, Zhang R. [Biomechanical research of different internal fixations using locking reconstruction plate for acetabular transverse fracture]. Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi 29:1084–1087. 2015;Chinese.

14. Fahmy M, Abdel Karim M, Khaled SA, Abdelazeem AH, Elnahal WA, Elnahal A. Single versus double column fixation in transverse fractures of the acetabulum: a randomised controlled trial. Injury 49:1291–1296. 2018;

15. Yildirim AO, Alemdaroglu KB, Yuksel HY, Öken ÖF, Ucaner A. Finite element analysis of the stability of transverse acetabular fractures in standing and sitting positions by different fixation options. Injury 46(Suppl 2):S29–S35. 2015;

16. Shazar N, Brumback RJ, Novak VP, Belkoff SM. Biomechanical evaluation of transverse acetabular fracture fixation. Clin Orthop Relat Res 352:215–222. 1998;

17. Ruggieri F, Zinghi GF, Montanari G, Benghi M. Transverse fractures of the acetabulum. Ital J Orthop Traumatol 12:25–40. 1986;

18. Øvre S, Madsen JE, Røise O. Transitional transverse acetabular fractures: differences between fractures with a large posterio-superior fragment and the inverse T-fracture–a report of 10 unusual cases. Acta Orthop 76:803–808. 2005;

19. Oh CW, Kim PT, Park BC, et al. Results after operative treatment of transverse acetabular fractures. J Orthop Sci 11:478–484. 2006;

20. Giordano V, do Amaral NP, Pallottino A, Pires e Albuquerque R, Franklin CE, Labronici PJ. Operative treatment of transverse acetabular fractures: is it really necessary to fix both columns? Int J Med Sci 6:192–199. 2009;

21. Li XG, Tang TS, Sun JY. Results after surgical treatment of transtectal transverse acetabular fractures. Orthop Surg 2:7–13. 2010;
